Brake Caliper Replacement - Front (Single Piston)

Brake Caliper Replacement - Front (Single Piston)

Removal Procedure

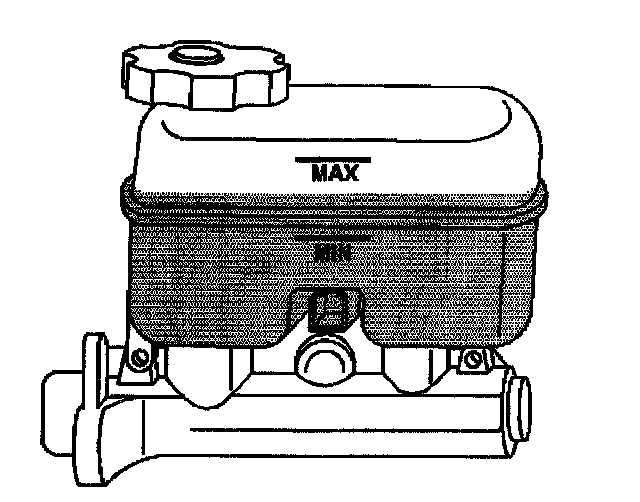

1. Inspect the fluid level in the brake master cylinder reservoir.

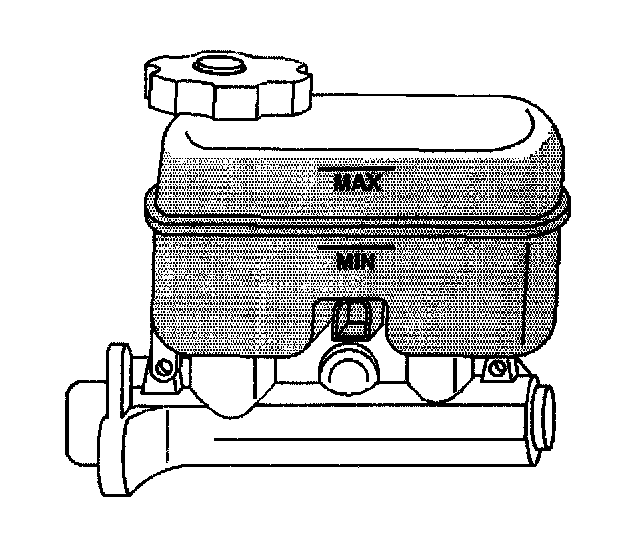

2. If the brake fluid level is midway between the maximum full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.





3. If the brake fluid level is higher than midway between the maximum full point and the minimum allowable level, using an appropriate tool, remove the brake fluid to the midway point before proceeding.
4. Raise the vehicle. Refer to Vehicle Lifting.
5. Remove the tire and wheel assembly.





6. Compress the front caliper piston.
^ Install a large C-clamp over the top of the caliper housing and against the back of the outboard pad.
^ Slowly tighten the C-clamp until the piston is fully seated in the brake caliper bore.
^ Remove the C-clamp from the caliper.





7. Remove the brake caliper hose bolt from the brake caliper.
8. Remove the 2 metal gaskets from the brake caliper bolt. These gaskets maybe stuck to the brake caliper and/or the brake hose end.
9. Discard the 2 metal gaskets.





10. Plug the opening in the front brake hose in order to prevent excessive brake fluid loss and contamination.

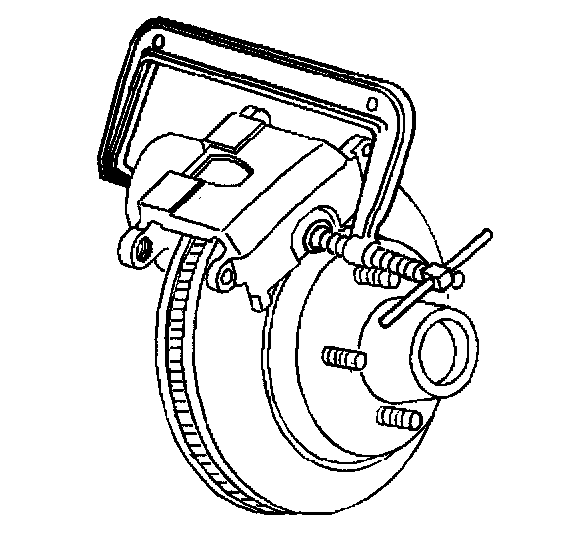

11. Remove the brake caliper mounting bolts.





12. Remove the brake caliper.
13. Remove the brake pads from the brake caliper.
14. Remove the brake caliper mounting bolt sleeves.
15. Remove the rubber O-rings.
16. Discard the rubber O-rings.

Installation Procedure
1. If reusing the brake caliper pin bolts and retainers, clean the brake caliper pin bolts and retainers using denatured alcohol, or equivalent.
2. Dry the brake caliper pin bolts using non-lubricated, compressed filter air.

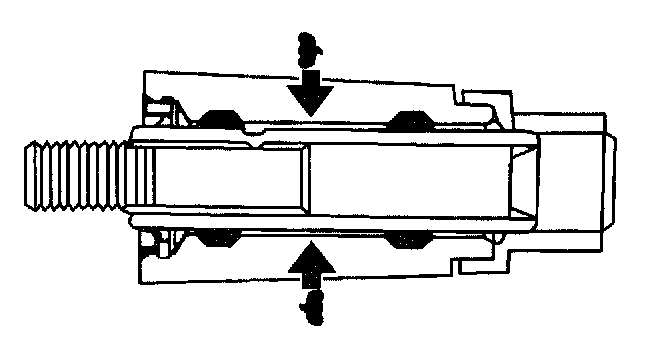

3. Lubricate the sleeves and bushings with Delco Silicone Lube, GM P/N 18010909, or equivalent.





4. Install the rubber O-ring bushings to the brake caliper.





5. Install the brake caliper mounting bolt sleeves.
6. Install the brake pads to the brake caliper.

Notice: Refer to Fastener Notice in Service Precautions.





7. Install the brake caliper mounting bolts.
Tighten the brake caliper mounting bolts to 51 Nm (38 lb ft).

Notice: Refer to Brake Hose Installation Notice in Service Precautions.

Important: When performing the following service procedure, DO NOT reuse the washers, replace them with new washers.





8. Install the front brake hose fitting, the 2 new gaskets and the brake hose fitting bolt.
Tighten the front brake hose bolt to 54 Nm(40 lb ft).
9. Fill the brake master cylinder to the proper level.
10. Bleed the brake caliper.
11. Inspect the brake system for leaks.
12. Install the tire and wheel assembly.
13. Lower the vehicle. Refer to Vehicle Lifting.
