Power Seat Motor: Service and Repair

SEAT ADJUSTER MOTOR GUARD REPLACEMENT

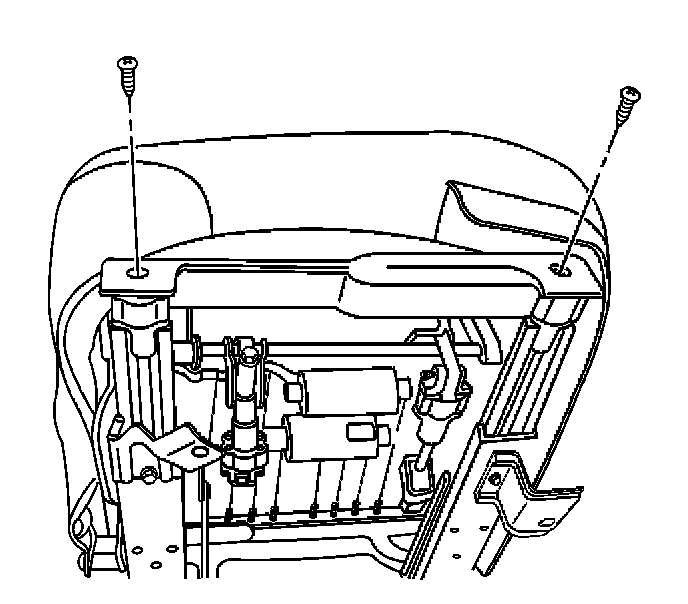

REMOVAL PROCEDURE




1. Remove the 2 screws securing the guard to the seat.
2. Remove the guard.

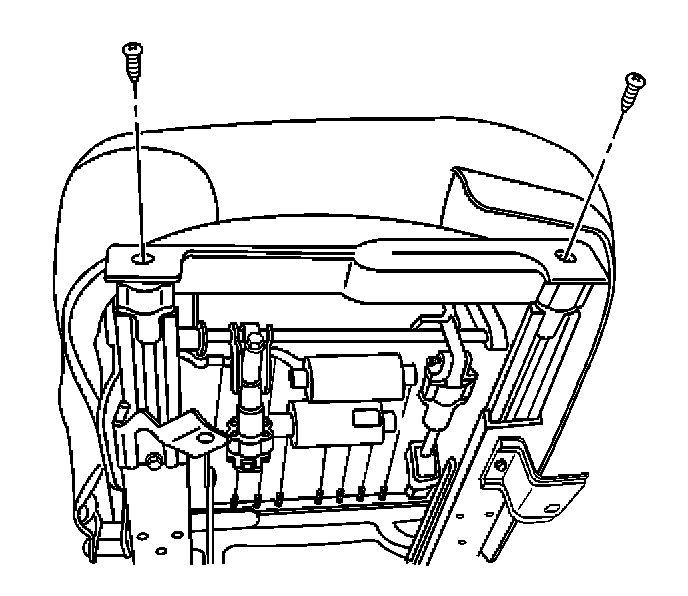

INSTALLATION PROCEDURE




1. Position the guard on the front of the seat adjuster assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the guard to the seat with the 2 screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).
