Horn Switch

Horn Switch Replacement

Removal Procedure

Caution: Refer to SIR Caution in Service Precautions.





1. Disable the SIR system.
2. Remove the inflator module.

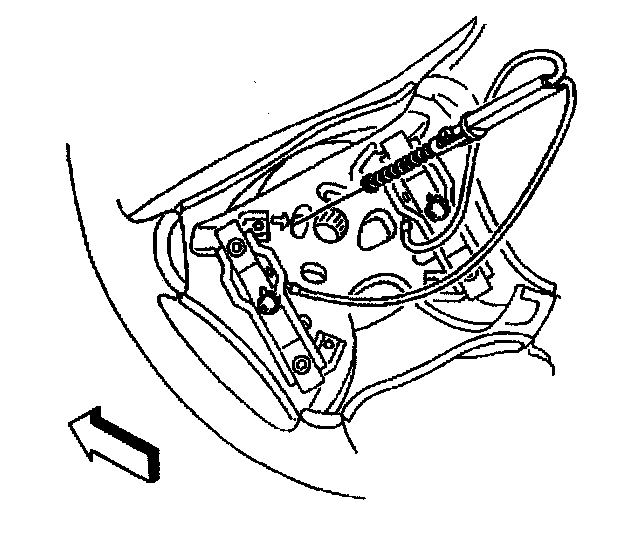

3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.





4. Remove the screws which retain the horn contact plate to the steering wheel.
5. Remove the horn plunger from the steering wheel.

Installation Procedure

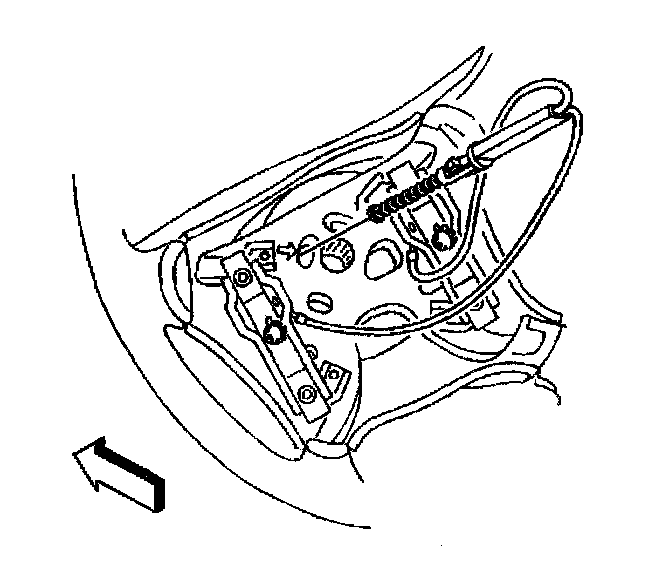

1. Install the horn plunger to the steering wheel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screws which retain the horn contact plate to the steering wheel.
^ Tighten the screws to 5.5 Nm (50 inch lbs.).





3. Install the horn plunger to the steering column.
4. Install the inflator module.
5. Enable the SIR system.
