On Vehicle Service

Pitman Arm Replacement (RWD)

^ Tools Required
- J 24319-B Steering Linkage and Tie Rod Puller
- J 29107-A Pitman Arm Puller
- J 6632-01 Pitman Arm Puller

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

Important: Use the proper tool in order to remove the relay ball stud nut.

2. Remove the relay rod ball stud at the pitman arm.

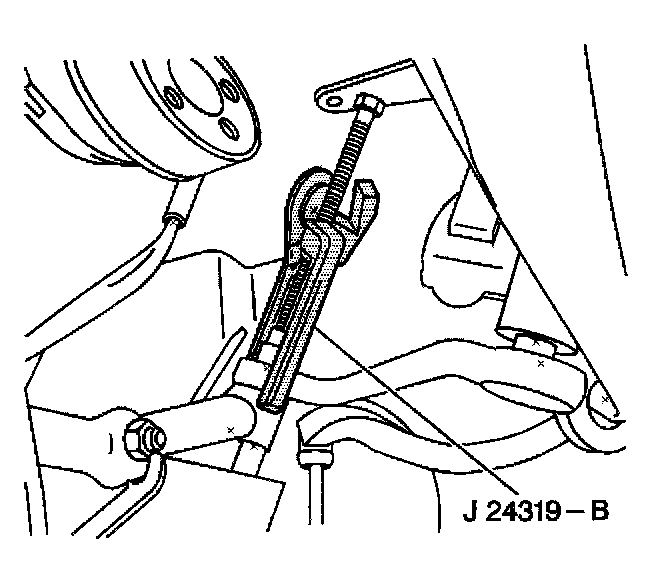

3. Remove the relay rod ball stud from the pitman arm using J24319-B.

Notice: Do not hammer on the pitman arm, pitman arm shaft or puller. Damage to the pitman arm or steering gear may result.

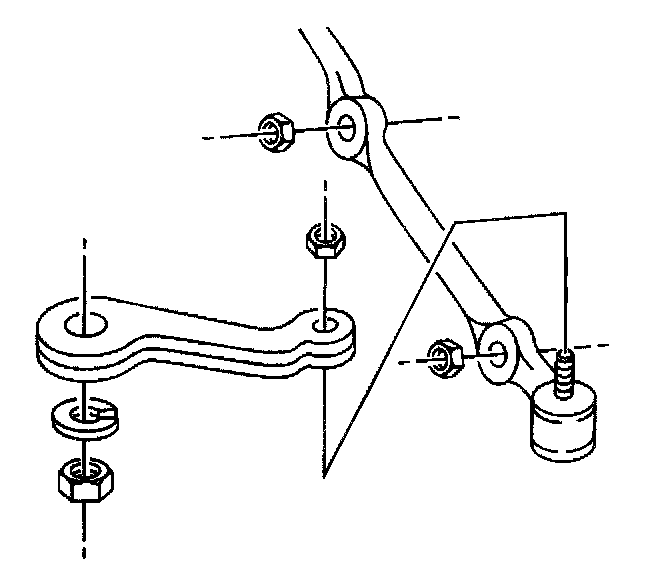

4. Remove the pitman arm nut and washer from the steering gear.

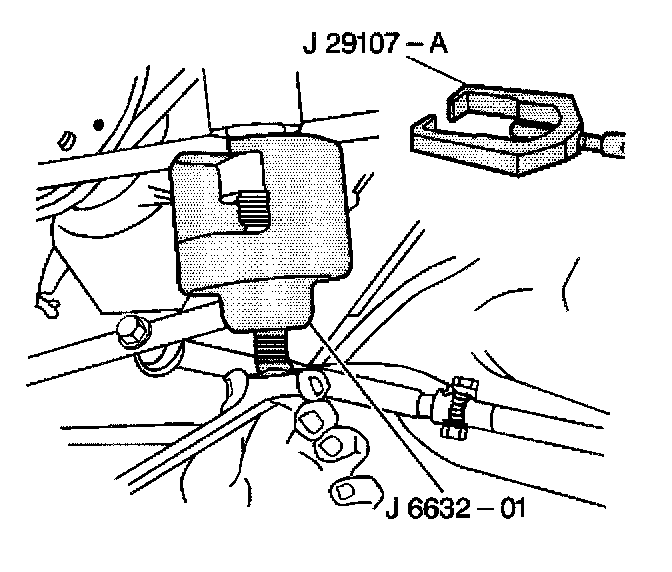

5. Remove the pitman arm from steering gear using J6632-01 or J29107-A.
6. Inspect the ball stud threads for damage.
7. Inspect the ball stud seals for excessive wear.
8. Clean the threads on the ball stud and the ball stud nut.

Installation Procedure

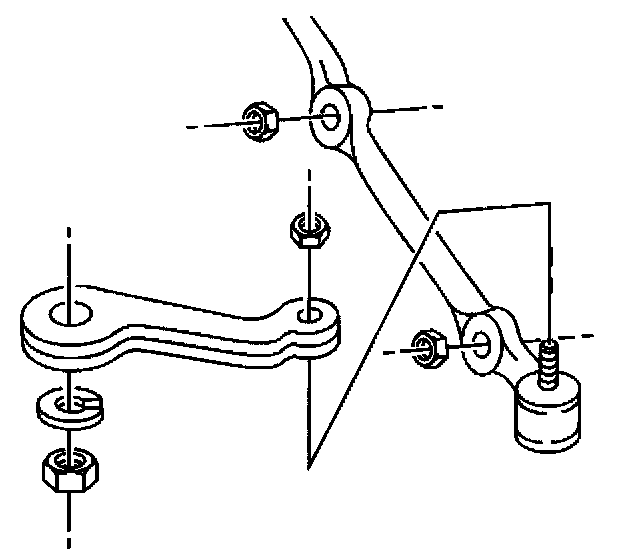

1. Install the pitman arm to the pitman arm shaft.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the pitman arm washer and nut to the pitman arm shaft.
^ Tighten the pitman arm shaft nut to 250 Nm (185 ft. lbs.).
3. Install the relay rod ball stud to the pitman arm. Ensure the seal is on the stud.
4. Install the new nut to the relay rod ball stud.
^ Tighten the relay rod ball stud nut to 48 Nm (36 ft. lbs.).
5. Lower the vehicle.
