Child Seat Tether Attachment: Service and Repair

CHILD RESTRAINT TETHER ANCHOR REPLACEMENT

REMOVAL PROCEDURE

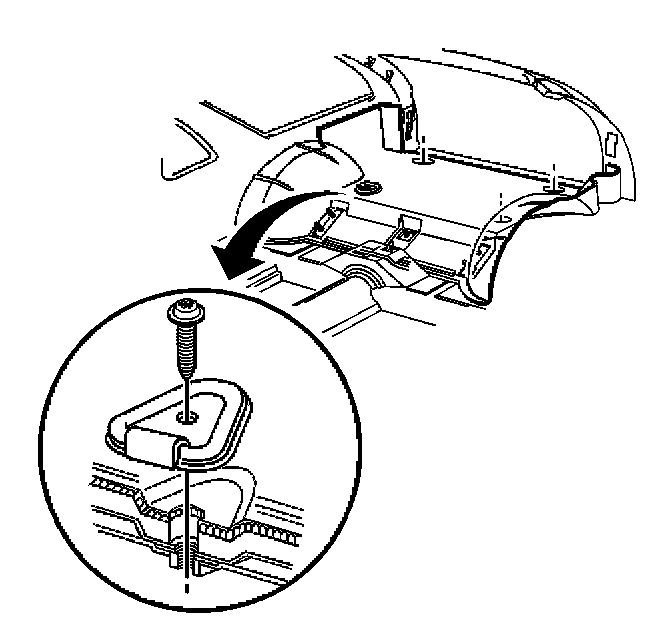

1. Remove the cargo tie down mounting bolt.
2. Remove the cargo tie down loop.

INSTALLATION PROCEDURE




1. Position the cargo tie down loop on the floor.
2. Install the cargo tie down loop to the floor with the mounting bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the cargo tie down loop mounting bolt to 35 N.m (26 lb ft).
