Evaporative Emission Control Canister: Service and Repair
EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENTREMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the left rear shield.

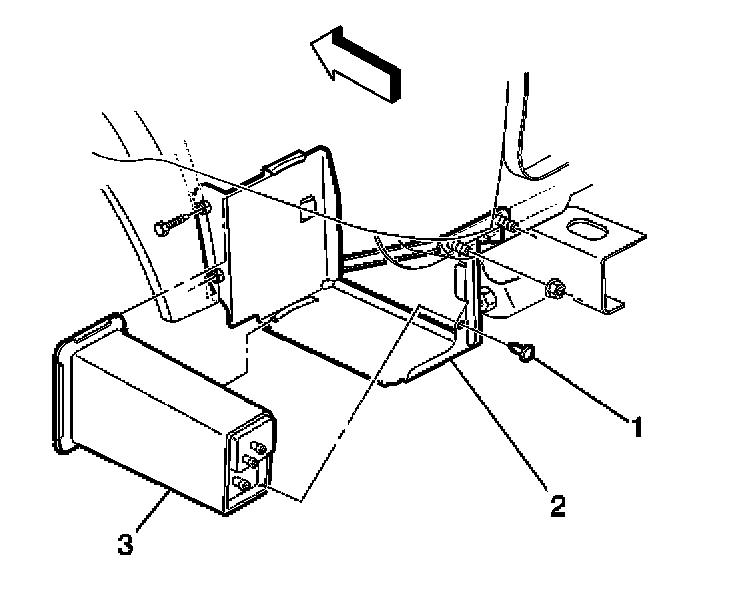

3. Remove the canister retainer (1).

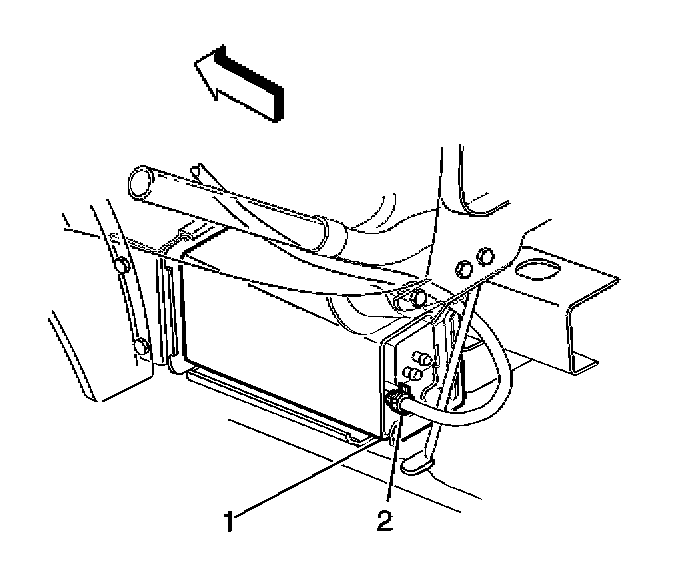

4. Disconnect the vent hose (2) from the canister (1).
5. Disconnect the fuel tank pipe and the purge pipe from the canister.
6. Remove the EVAP canister.
INSTALLATION PROCEDURE
1. Install the EVAP canister.
2. Connect the fuel tank pipe and the purge pipe to the canister.

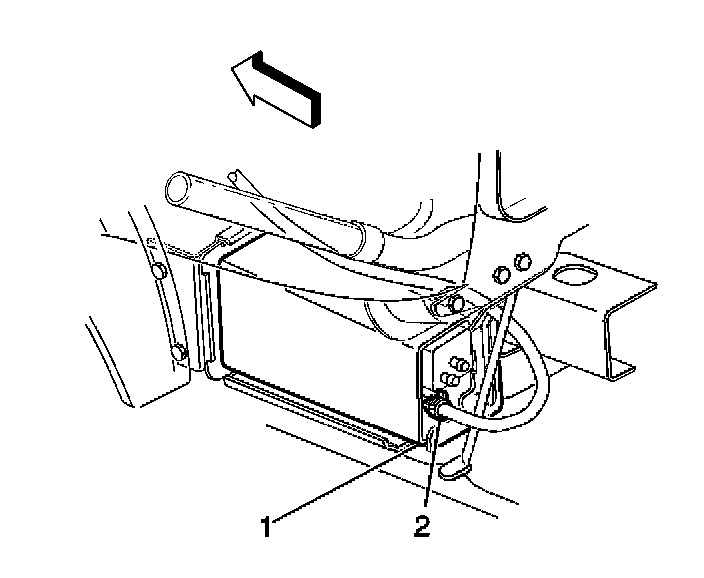

3. Connect the vent hose (2) to the canister (1).

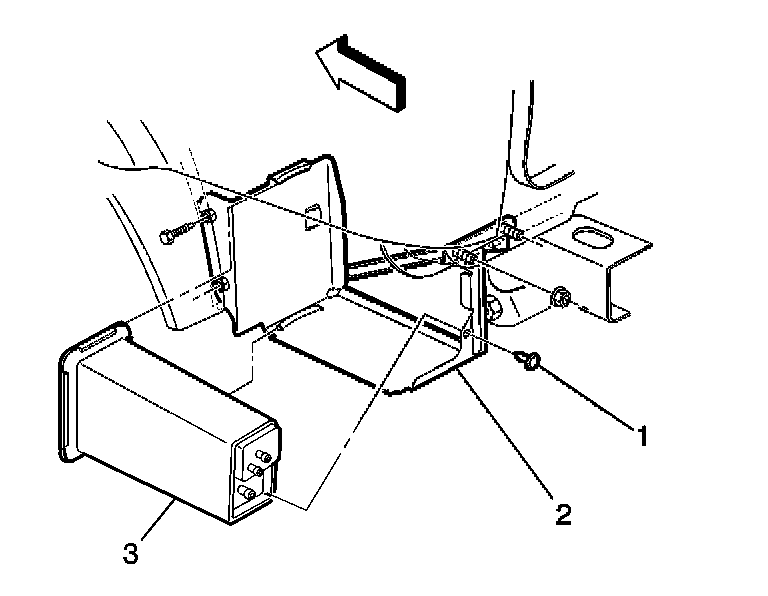

4. Install the canister retainer (1).
5. Install the left rear shield.
6. Lower the vehicle.
