Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Instrument Panel Views
>>
Instrument Panel, LH
Instrument Panel, LH

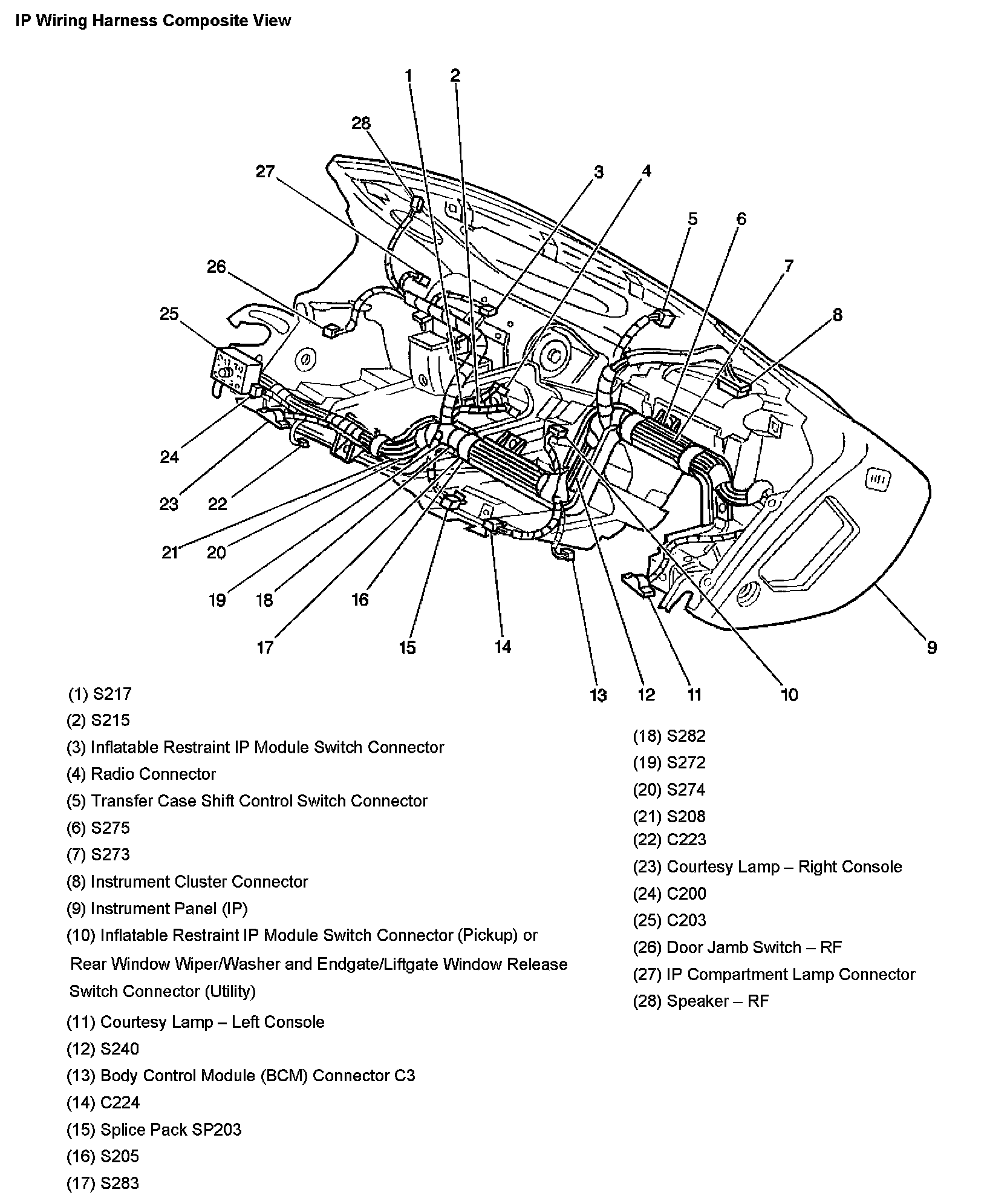

IP Wiring Harness Composite View:

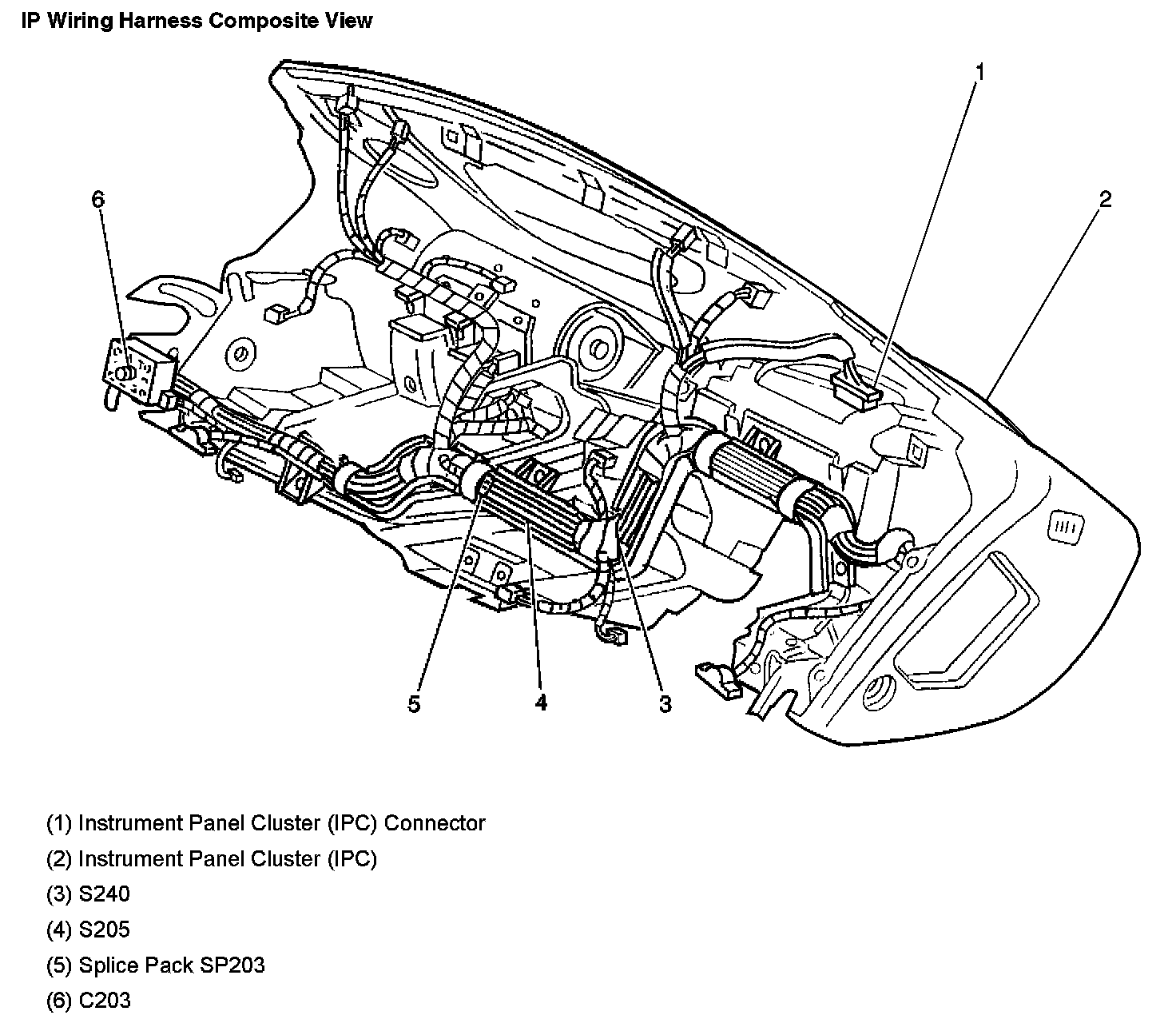

IP Wiring Harness Composite View:
