Compressor Hose Assembly
COMPRESSOR HOSE ASSEMBLY REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.

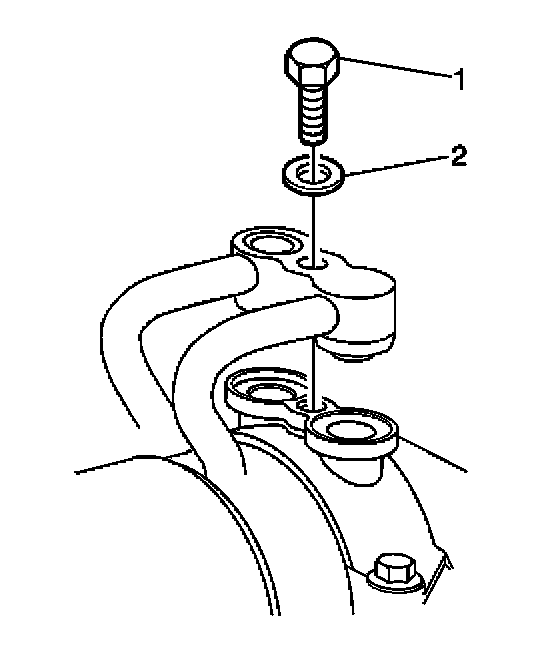

2. Remove the compressor hose assembly bolt (1) and the washer (2).
3. Remove the compressor hose assembly from the compressor.
4. Remove the sealing washers.

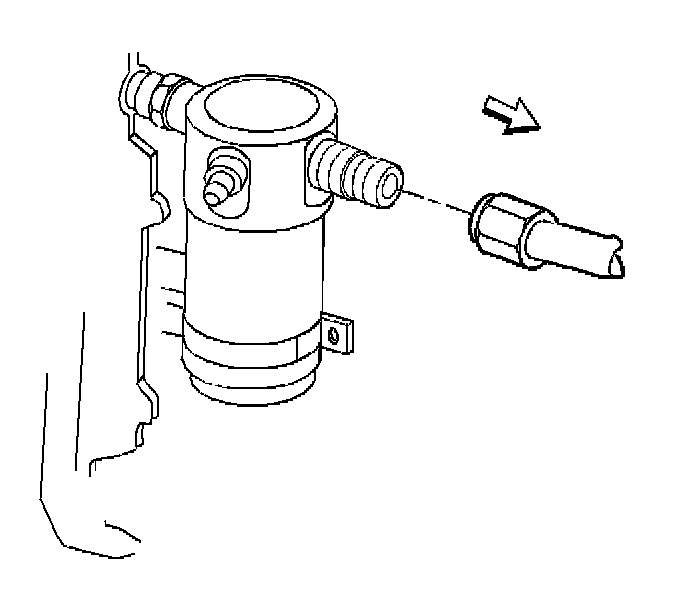

5. Remove the compressor hose assembly from the accumulator.
6. Remove the O-ring seal and discard.
7. Remove the lower radiator hose.

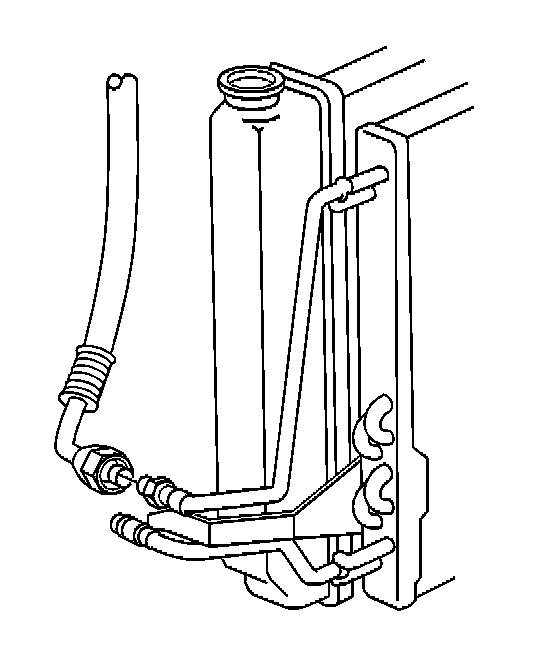

8. Remove the compressor hose assembly from the condenser.
9. Remove the O-ring seal and discard.
INSTALLATION PROCEDURE
1. Install a new O-ring seal.

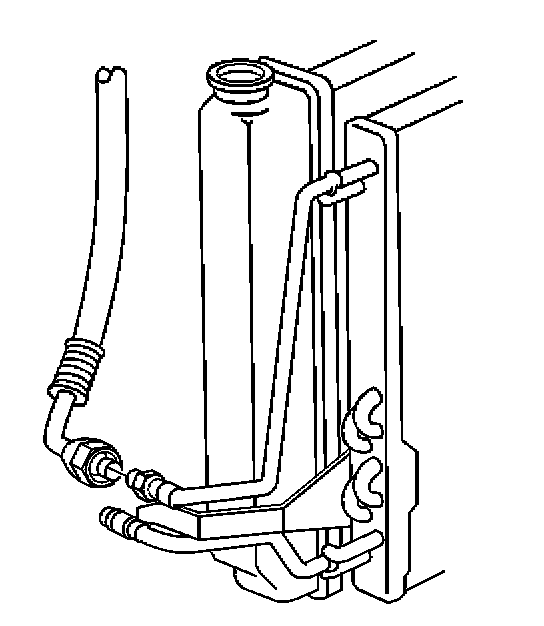

2. Install the compressor hose assembly to the condenser.
NOTE: Refer to Fastener Notice in Service Precautions. Vehicle Damage Warnings
Tighten
Tighten the hose to........................28 N.m (21 lb ft).
3. Install the lower radiator hose.
4. Install a new O-ring seal.
5. Install the compressor hose assembly to the accumulator.
Tighten
Tighten the hose to...........................48 N.m (35 lb ft).
6. Install the sealing washers.
7. Install the compressor hose assembly to the compressor.

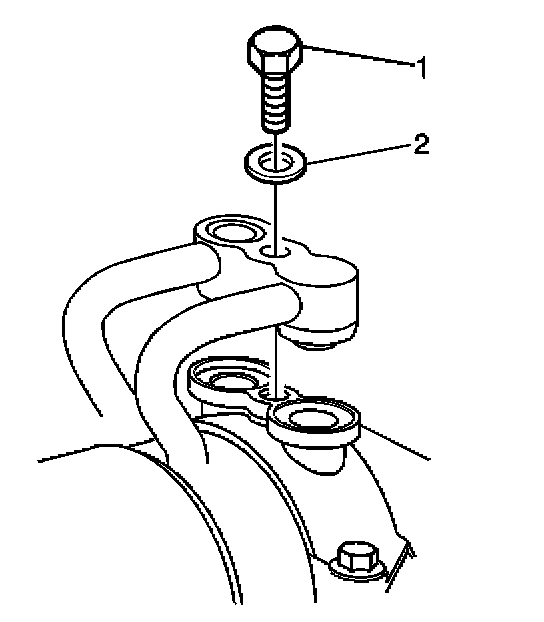

8. Install the compressor hose assembly washer (2) and the bolt (1).
Tighten
Tighten the bolt to..............................33 N.m (24 lb ft).
9. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
10. Leak test the fittings of the components using the J 39400-A.
