Fan Shroud: Service and Repair

Fan Shroud Replacement

Removal Procedure

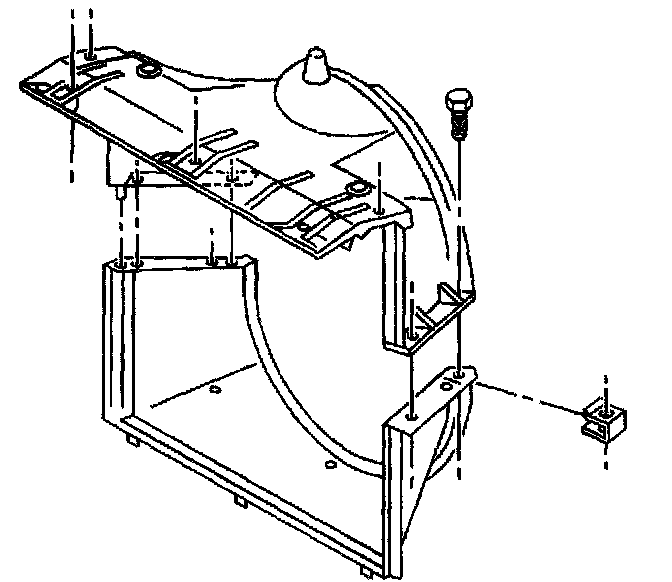

1. Remove the upper fan shroud bolts.

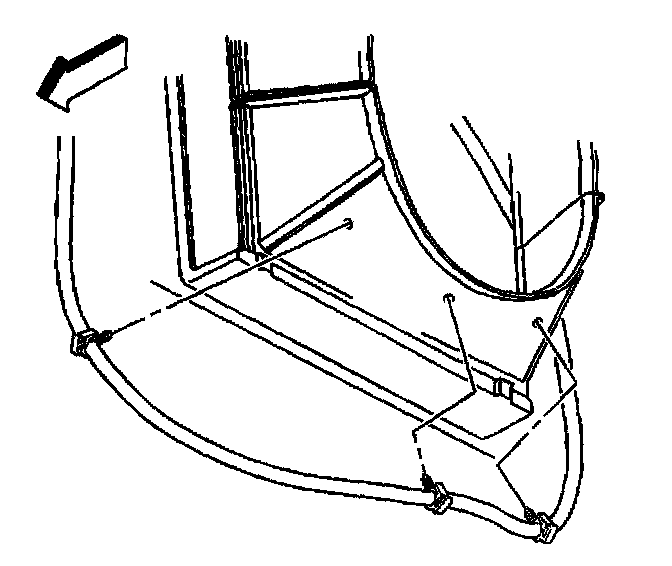

2. Remove the coolant recovery reservoir hose from the lower fan shroud.
3. Remove the upper fan shroud.

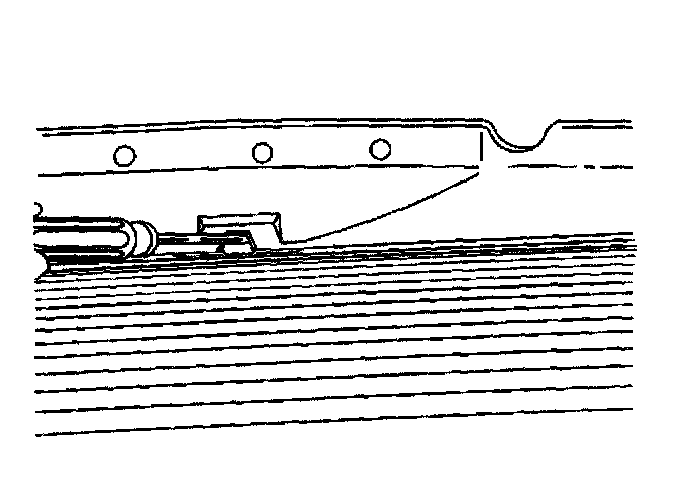

4. Lift the lower fan shroud just enough to disengage the locating tabs from the radiator.
5. Remove the lower fan shroud from the vehicle.

Installation Procedure





1. Install the lower fan shroud in the vehicle.

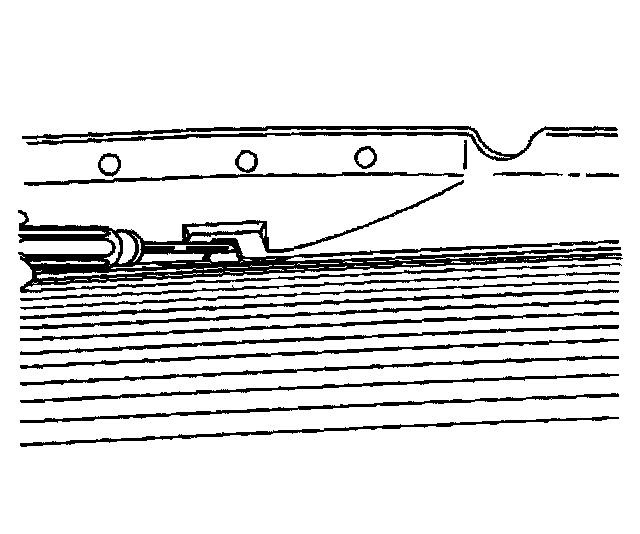

1.1. Position the lower fan shroud against the radiator.
1.2. Engage the locating tabs by pushing down on the fan shroud.

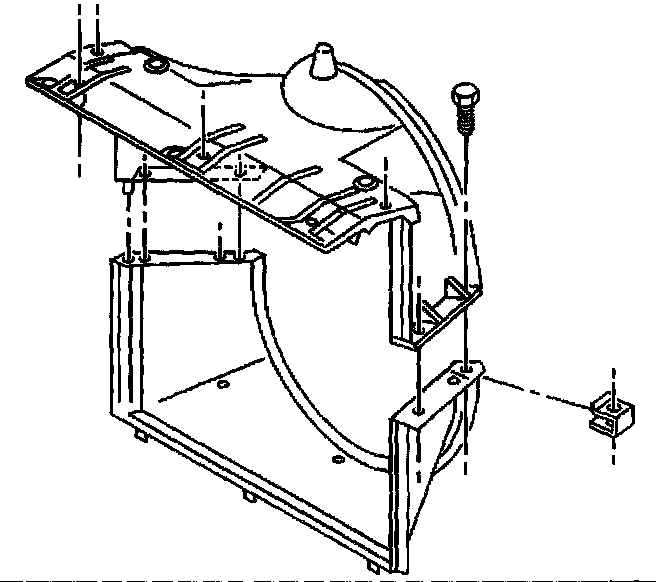

2. Install the upper fan shroud.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the upper fan shroud bolts.
^ Tighten the bolts to 10 Nm (89 inch lbs.).

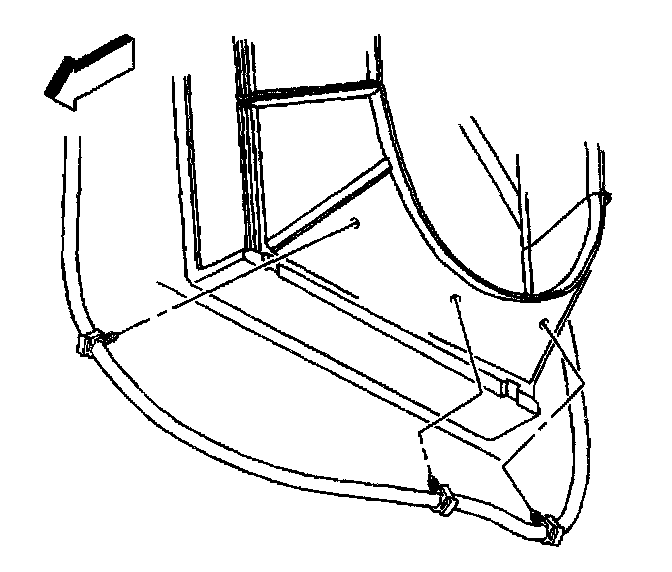

4. Install the coolant recovery reservoir hose to the lower fan shroud.
