Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

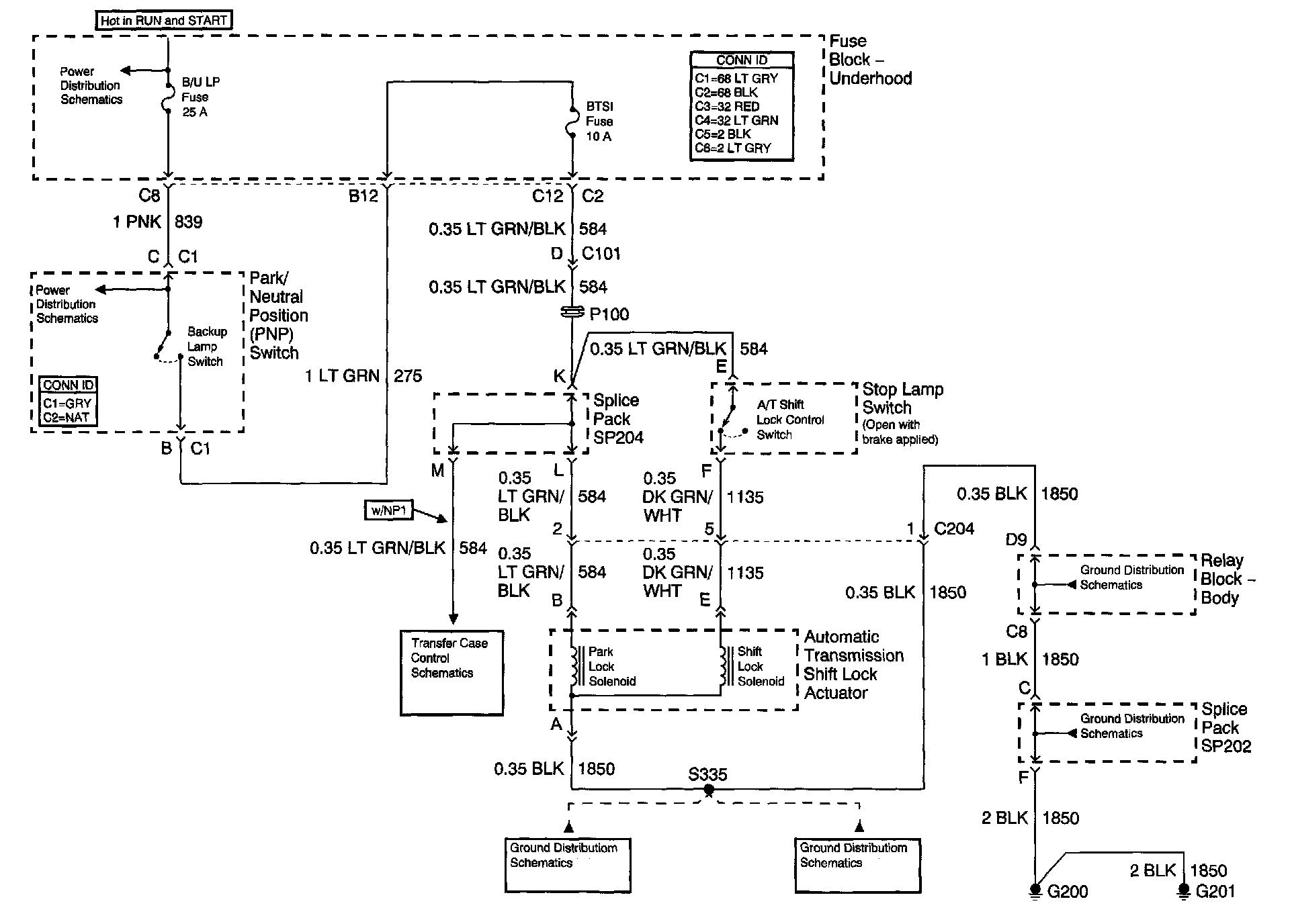

Shift Interlock, A/T
>>
Utility W/ Floor Shift
Utility W/ Floor Shift
