Home
>>
Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Alignment Actuator
Headlamp Alignment Actuator

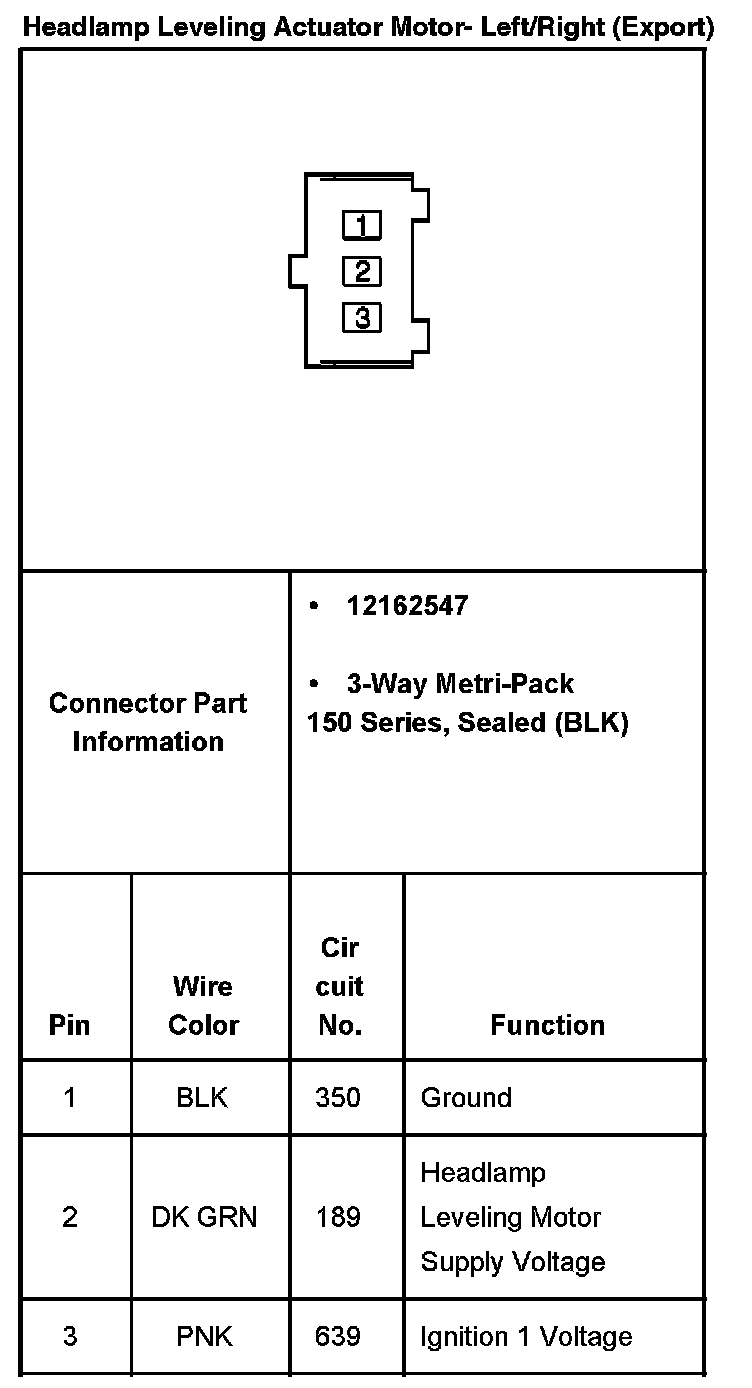

Headlamp Leveling Actuator Motor- Left/Right (Export):
