Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C317
>>
C302
C302

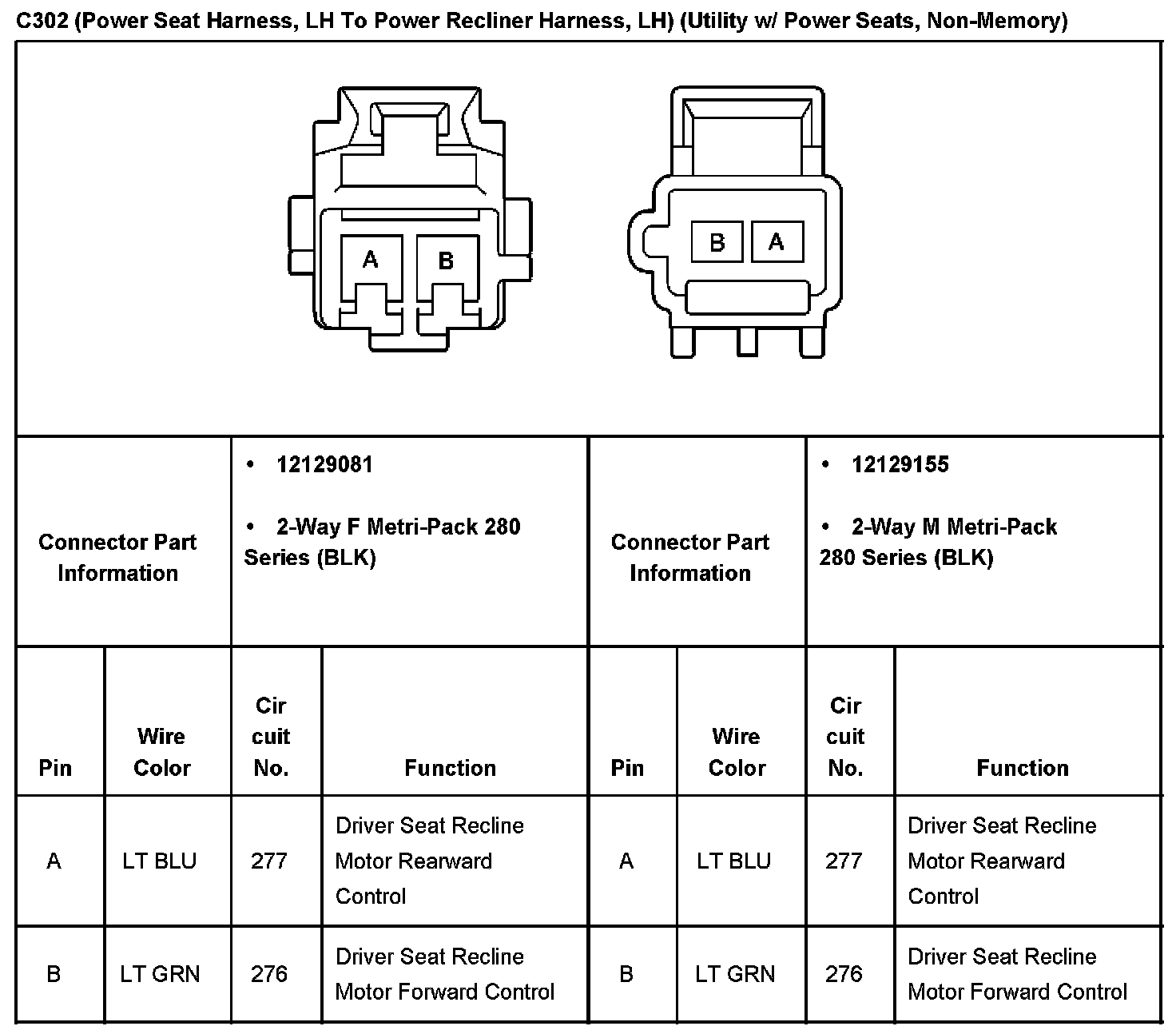

C302 (Power Seat Harness, LH To Power Recliner Harness, LH) (W/ Power Seats, Non-Memory):

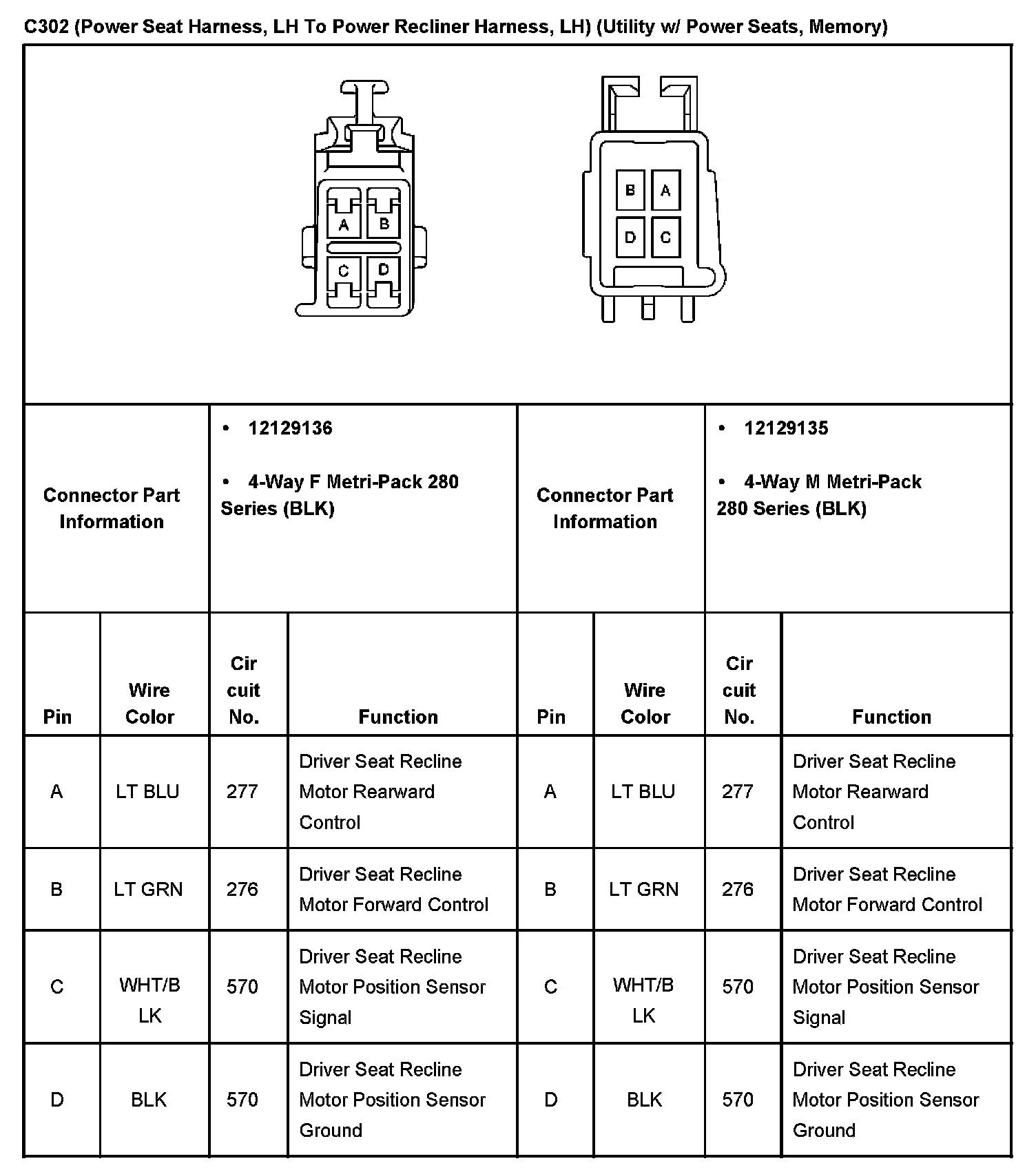

C302 (Power Seat Harness, LH To Power Recliner Harness, LH) (W/ Power Seats, Memory):
