Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200 - C229
>>
C210
C210

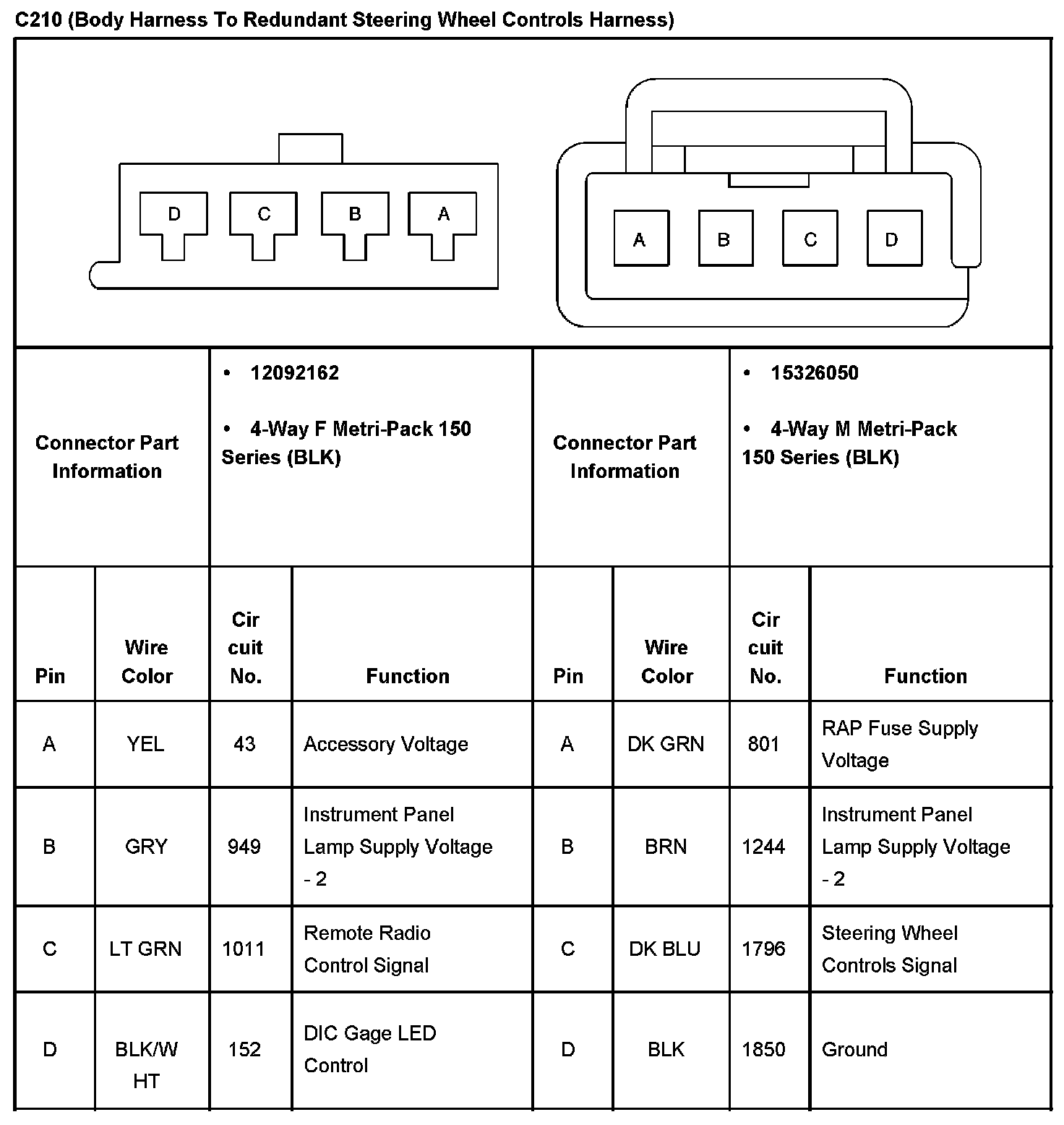

C210 (Body Harness To Redundant Steering Wheel Controls Harness):
