Chevy Truck
>>
2004
>>
Blazer 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C119
>>
C100
C100

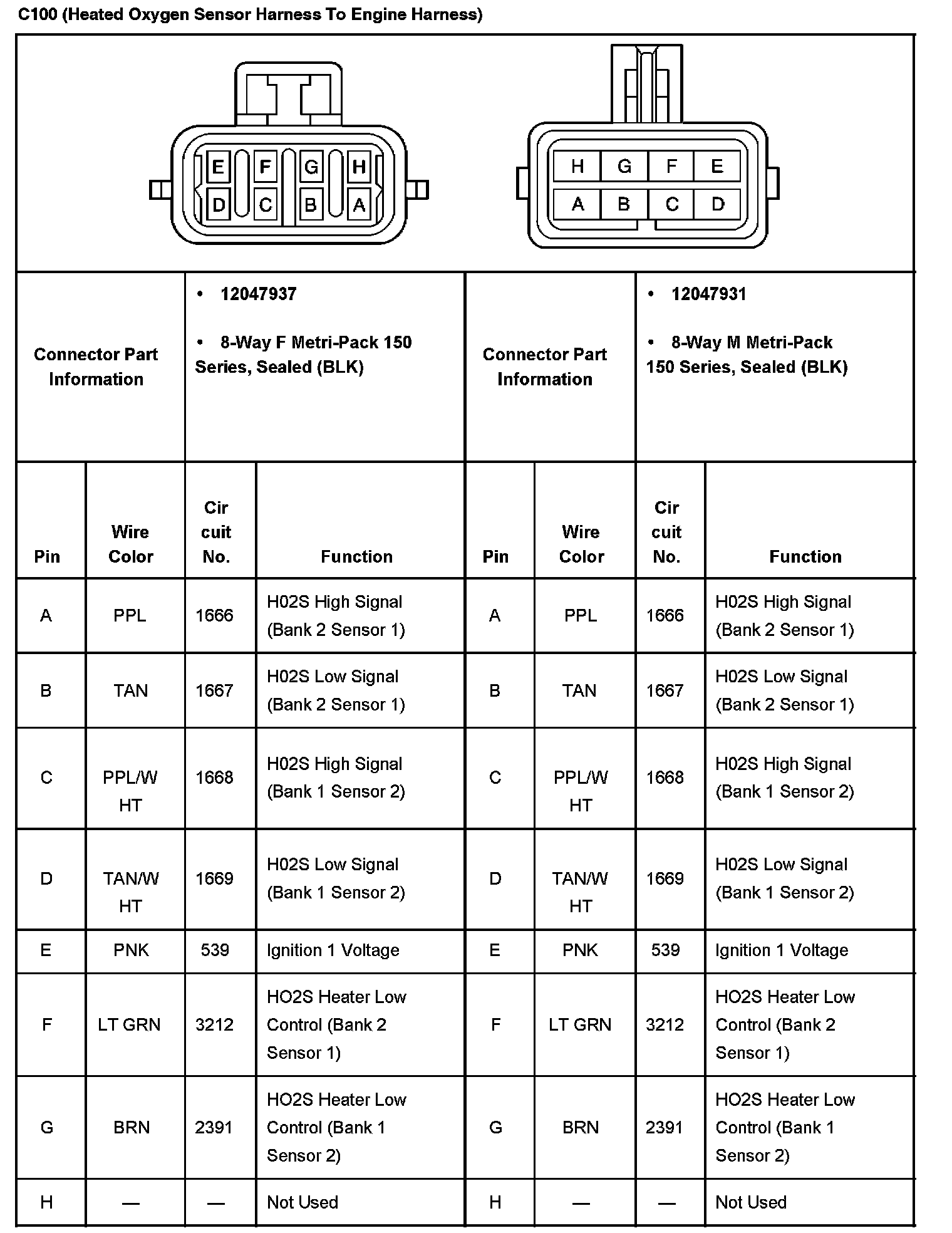

C100 (Heated Oxygen Sensor Harness To Engine Harness):
