Brake Caliper Bracket Replacement - Rear
Brake Caliper Bracket Replacement - RearRemoval Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the rear brake pads.
4. Remove the anti raffle retainers.

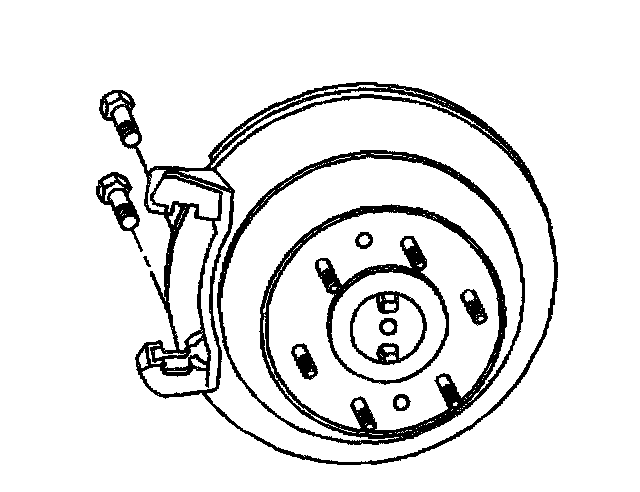

5. Remove the rear brake caliper bracket mounting bolts.
6. Remove the rear brake caliper bracket.
Installation Procedure

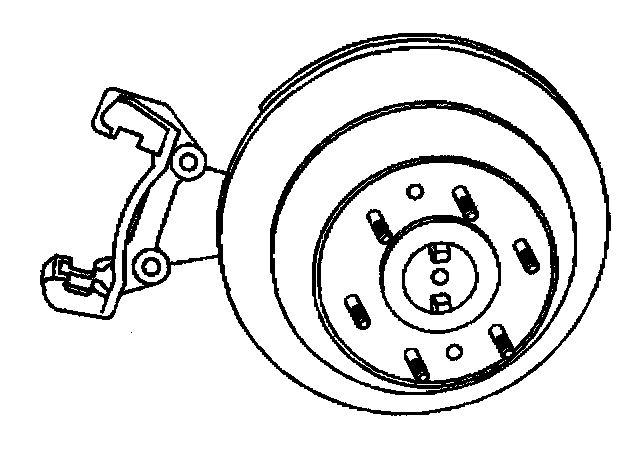

1. Install the caliper bracket.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the rear brake caliper bracket mounting bolts.
Tighten the rear brake caliper bracket mounting bolts to 70 Nm (52 lb ft).
3. Install the rear brake anti rattle retainers.
4. Install the rear brake pads.
5. Install the tire and wheel assembly.
6. Lower the vehicle. Refer to Vehicle Lifting.
7. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
8. Slowly release the brake pedal.
9. Wait 15 seconds, then repeat steps 6-7 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
10. Fill the brake master cylinder to the proper level.
