High Mounted Stop Lamp Replacement

HIGH MOUNTED STOP LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Ensure the headlamp switch is in the OFF position.
2. Remove the rear compartment cover assembly.
3. Remove the cargo box bridge center bar.
4. Remove the panel assembly from the vehicle.
5. Disconnect the electrical connector from the high mounted stop lamp.

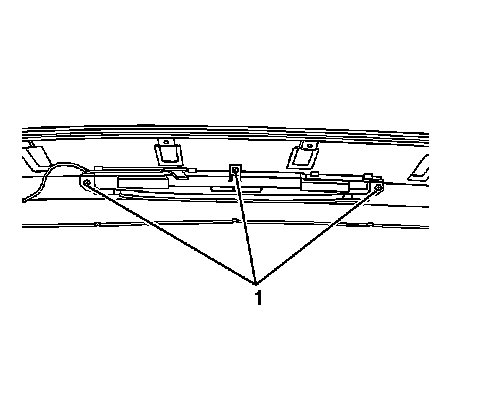

6. Remove the fastener (1).

INSTALLATION PROCEDURE
1. Install the stop lamp to the cargo box bridge center bar.




2. Install the fastener (1).
3. Connect the electrical connector.
4. Install the panel assembly to the vehicle.
5. Install the cargo box bridge center bar.
6. Install the rear compartment cover assembly.
