Water Pump Installation

Tools Required
- J41240 Fan Clutch Remover and Installer





1. Install the water pump and gaskets.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the water pump bolts.
- Tighten the water pump bolts a first pass to 25 Nm (18 lb ft).
- Tighten the water pump bolts a final pass to 50 Nm (37 lb ft).





3. Install the water pump pulley (303) and bolts (302).

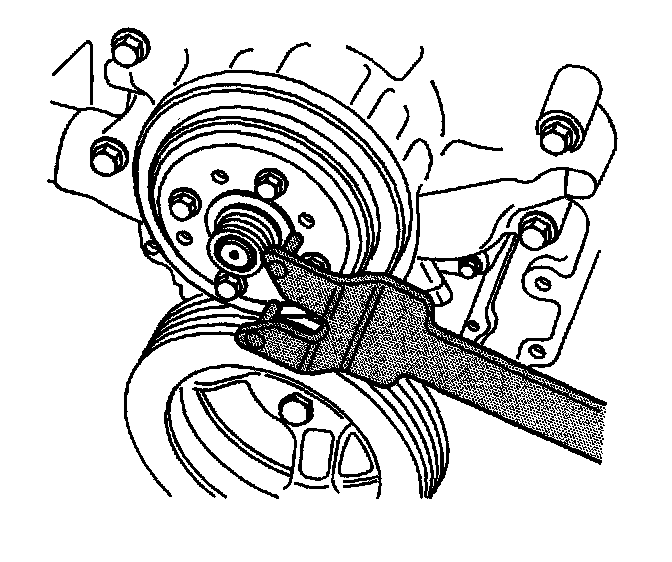

4. Use the J41240 in order to retain the water pump pulley.
Tighten the water pump pulley bolts to 25 Nm (18 lb ft).
