Chevy Truck
>>
2004
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Intake Manifold/Upper Engine

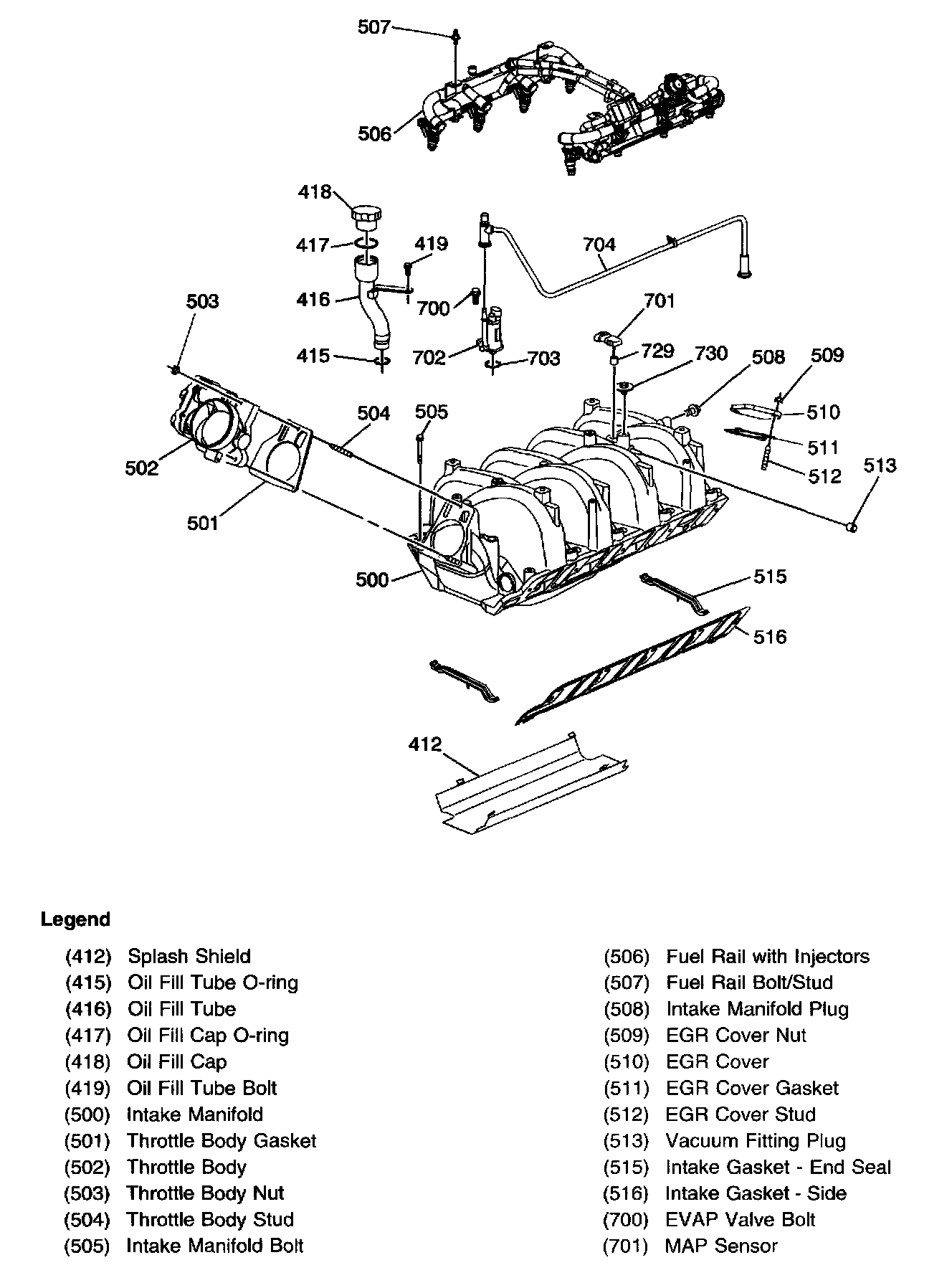

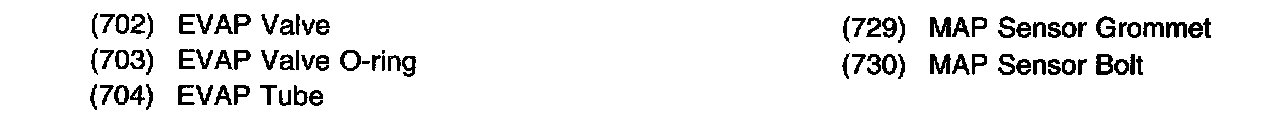

Intake Manifold/Upper Engine
Intake Manifold
/Upper Engine
