Home
>>
Chevy Truck
>>
2004
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C201 - C310
>>
C305
C305

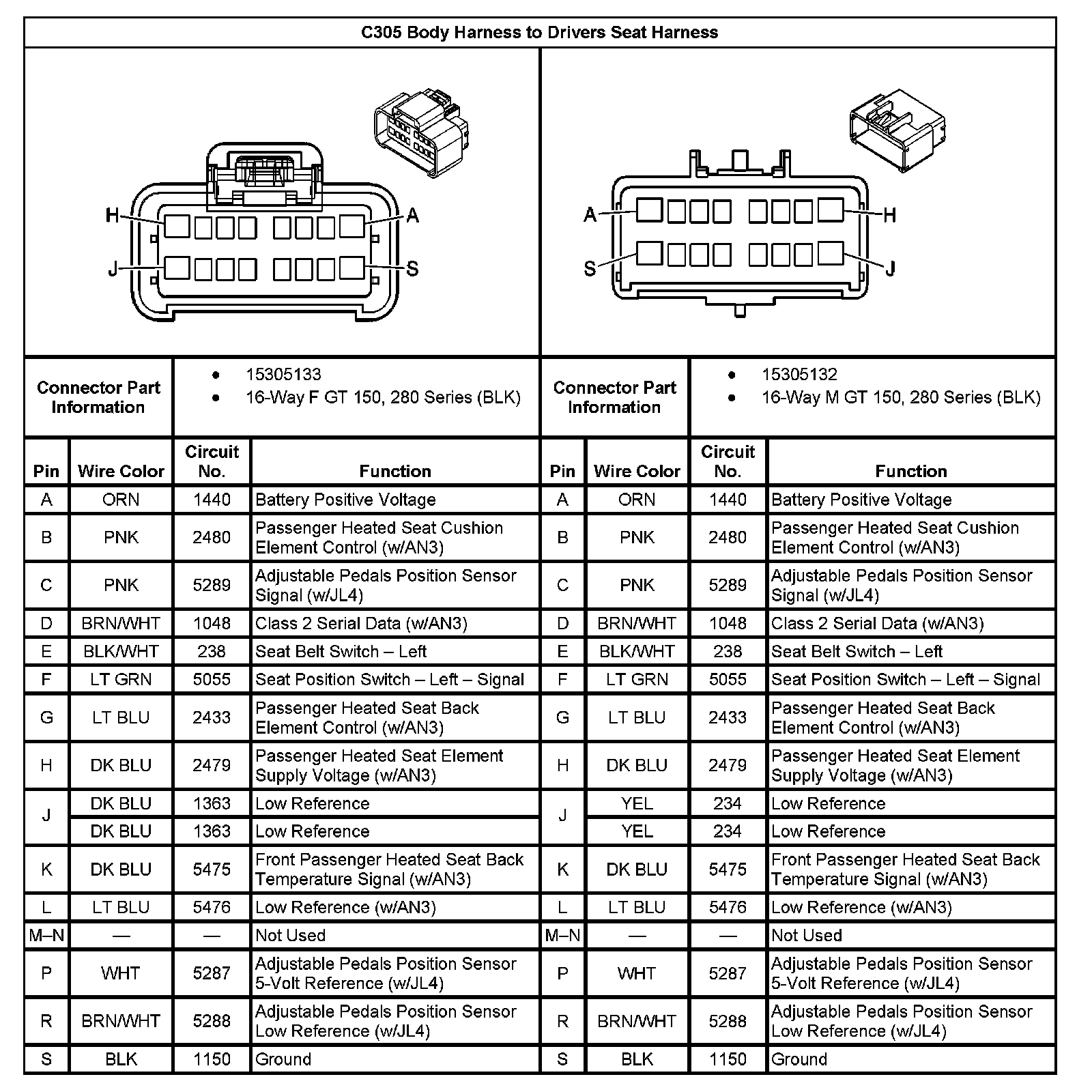

C305 Body Harness To Drivers Seat Harness:
