Home
>>
Chevy Truck
>>
2004
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>
Relay Block #2
Relay Block #2
Location View:

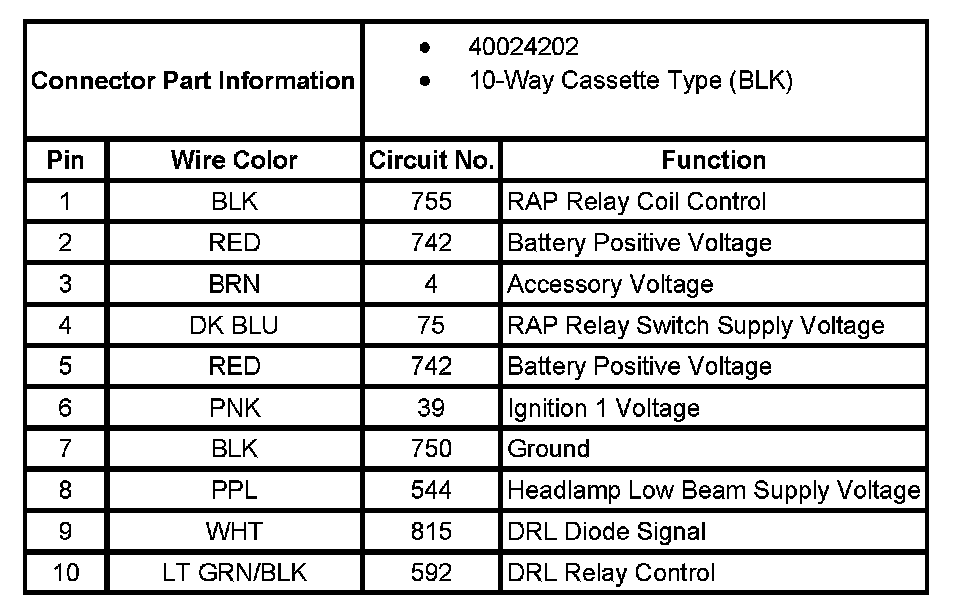

Application Table:
