Knee Bolster Bracket Replacement - Right
KNEE BOLSTER BRACKET REPLACEMENT - RIGHTREMOVAL PROCEDURE
1. Remove the passenger's knee bolster.
2. Roll the instrument panel down.
IMPORTANT: Do not remove the instrument panel to replace right or right center knee bolster brackets.

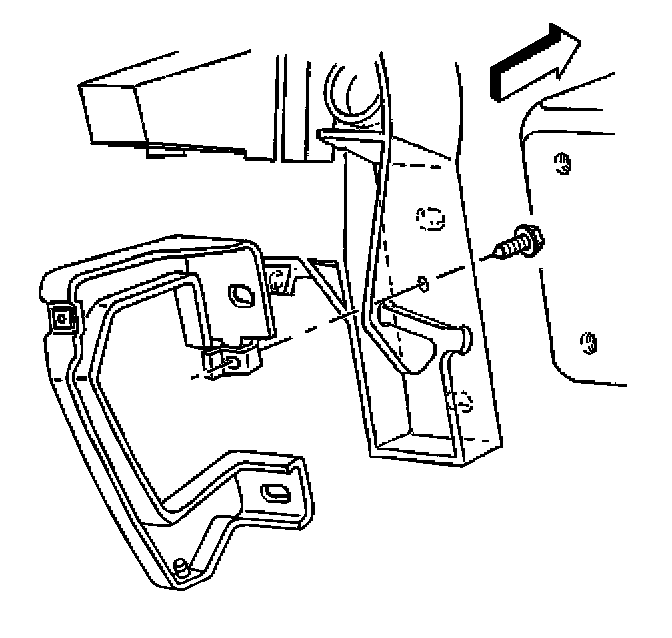

3. Remove the knee bolster bracket right side screws.
4. Remove the knee bolster bracket right side.

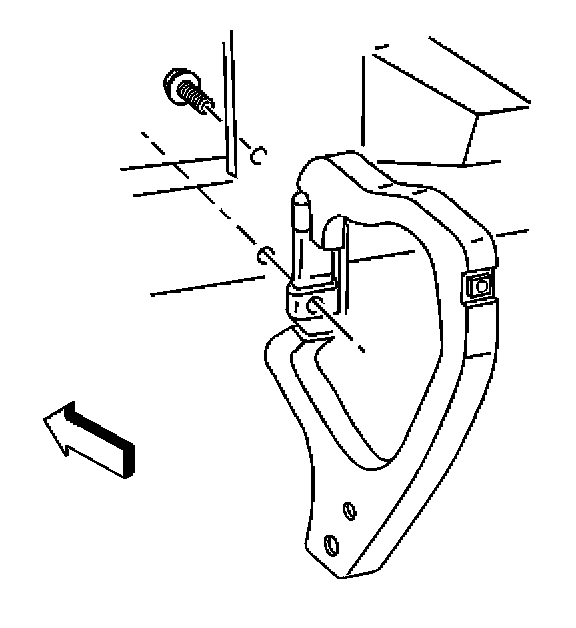

5. Remove the knee bolster bracket right center screws.
6. Remove the knee bolster bracket right center.
INSTALLATION PROCEDURE

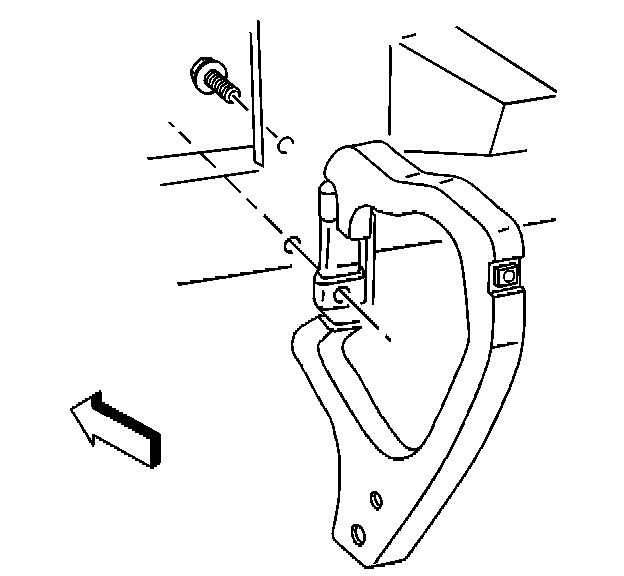

1. Install the knee bolster bracket right center.
2. Install the knee bolster bracket right center screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the knee bolster bracket right center screws to 8 N.m (71 lb in).

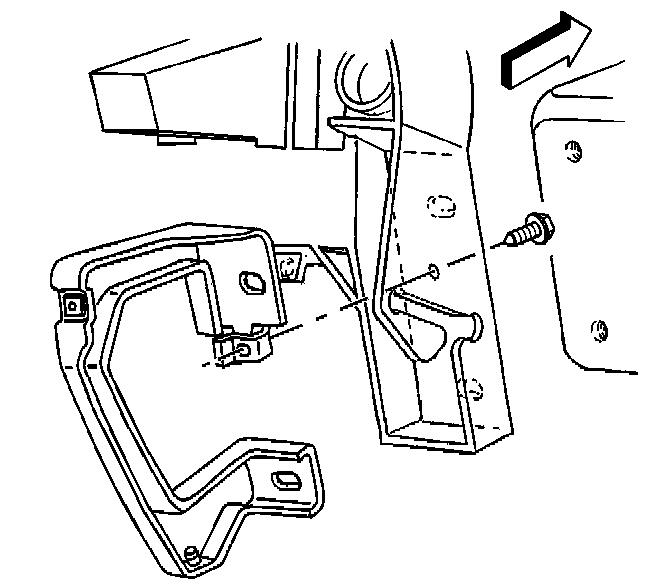

3. Install the knee bolster bracket right side.
Install the knee bolster bracket right side screws.
Tighten
Tighten the knee bolster bracket right side screws to 8 N.m (71 lb in).
4. Roll the instrument panel up.
5. Install the passenger's knee bolster.
