Knee Bolster Bracket Replacement - Driver

Driver Knee Bolster Bracket Replacement

Removal Procedure





1. Remove the driver's knee bolster. Refer to Driver Knee Bolster Replacement (Knee Bolster Replacement - Driver) .
2. Remove the bolts that retain the brackets to the instrument panel trim pad.
3. Roll the instrument panel back, but do not remove the instrument panel. Refer to Instrument Panel Assembly Replacement (Instrument Panel (IP) - Assembly Replacement) .

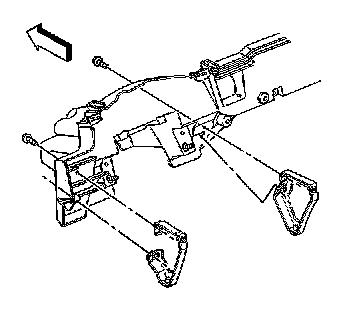

4. Remove the bolts that retain the knee bolster brackets to the instrument panel carrier.
5. Remove the knee bolster brackets from the vehicle.



Installation Procedure

1. Install the knee bolster brackets to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts that retain the brackets to the instrument panel carrier.

Tighten the bolts to the brackets to the instrument panel carrier to 10 N.m (89 lb in).

3. Install the instrument panel to the vehicle. Refer to Instrument Panel Assembly Replacement (Instrument Panel (IP) - Assembly Replacement) .
4. Install the bolts that retain the brackets to the instrument panel trim pad.

Tighten the bolts that retain the bracket to the instrument panel to 10 N.m (89 lb in).





5. Install the driver's knee bolster. Refer to Driver Knee Bolster Replacement (Knee Bolster Replacement - Driver) .
