Fuel Filler Hose Replacement

FUEL FILLER HOSE REPLACEMENT

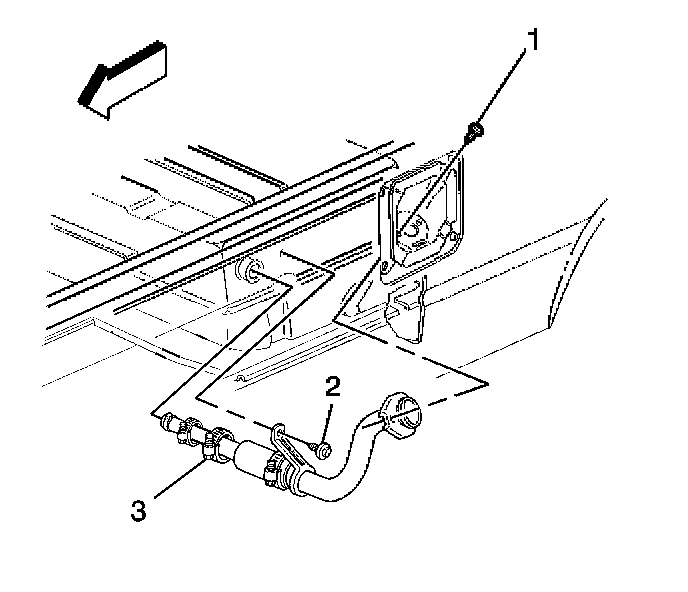

REMOVAL PROCEDURE




1. Remove the fuel filler tube.
2. Disconnect the fuel fill hose from the fuel fill tube.
3. Remove the fuel fill hose and the hose clamps (3).
4. Cap the fuel tank opening.

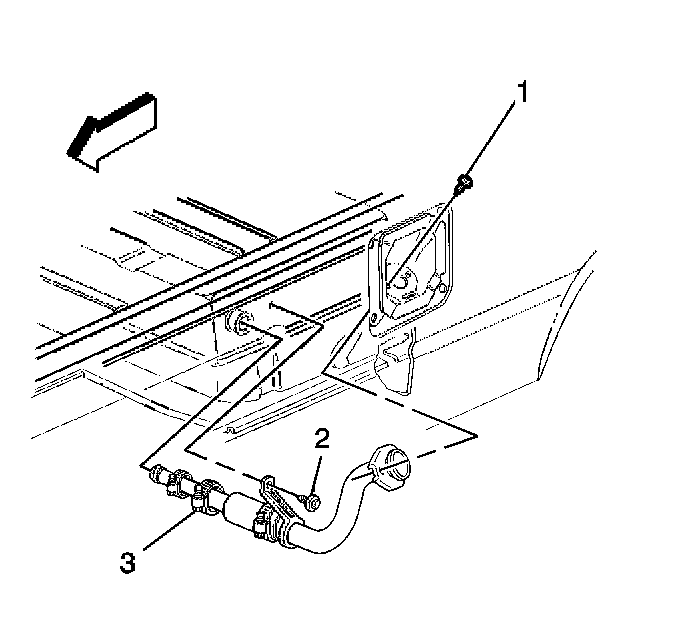

INSTALLATION PROCEDURE




1. Uncap the fuel tank opening.
2. Install the fuel fill hose and the hose clamps (3) on to the filler tube.
3. Install the fuel filler tube.
