EVAP Hoses/Pipes Replacement - Chassis/Canister

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - CHASSIS/CANISTER

REMOVAL PROCEDURE
1. Remove the fuel tank.

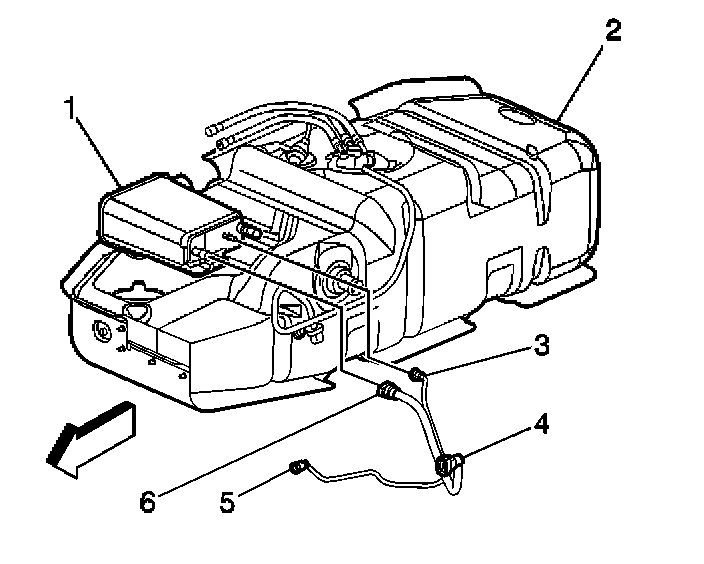

2. Disconnect the rear chassis EVAP purge pipe (3) from the EVAP canister (1).
3. Remove the rear chassis EVAP purge pipe.

INSTALLATION PROCEDURE

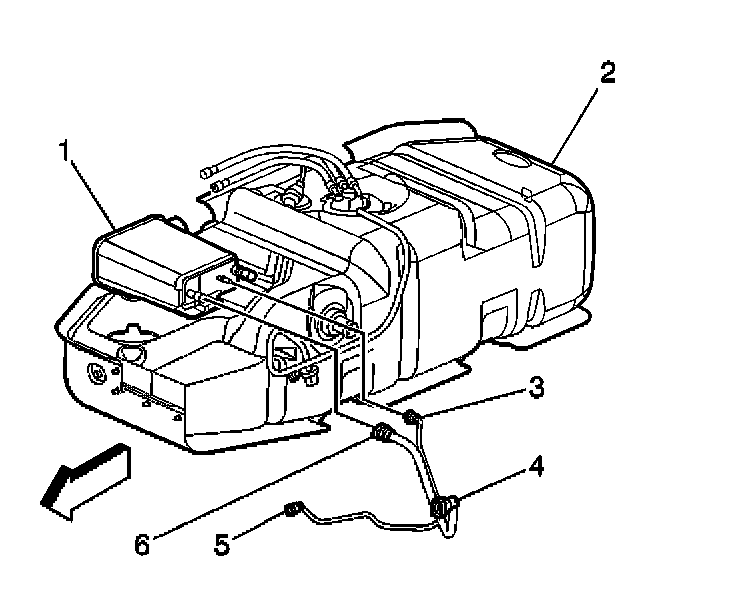

1. Connect the rear chassis EVAP purge pipe (3) to the EVAP canister (1).
2. Install the fuel tank.
