EVAP Hoses/Pipes Replacement - Canister/Fuel Tank

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - CANISTER/FUEL TANK

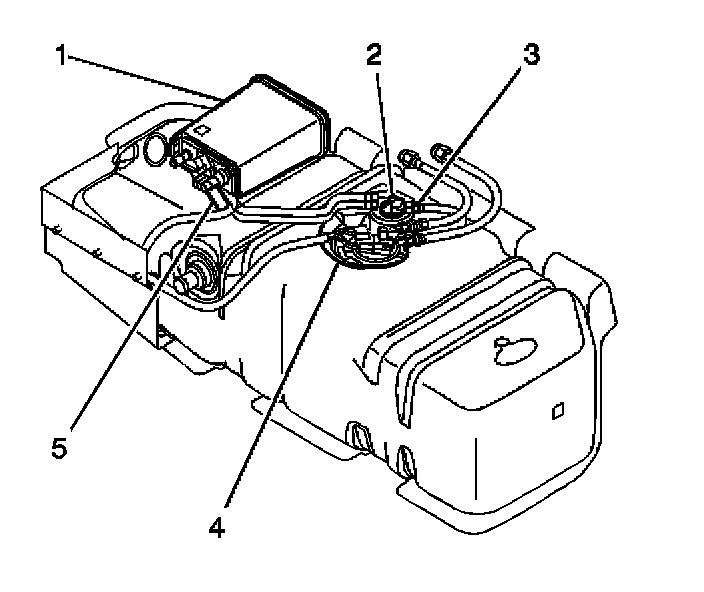

REMOVAL PROCEDURE
1. Remove the fuel tank.




2. Disconnect the EVAP vapor pipe (5) from the EVAP canister (1).
3. Disconnect the EVAP vapor pipe from the fill limiter vent valve (2).
4. Remove the EVAP vapor pipe.

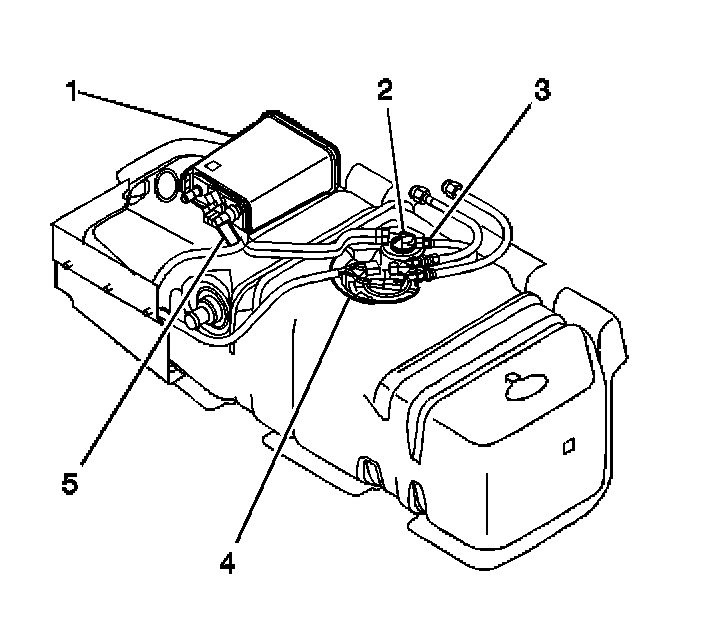

INSTALLATION PROCEDURE




1. Connect the EVAP vapor pipe (5) to the fill limiter vent valve (2).
2. Connect the EVAP vapor pipe to the EVAP canister (1).
3. Install the fuel tank.
