Home >> Chevy Truck >> 2004 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID >> Relay Block #1

Relay Block #1

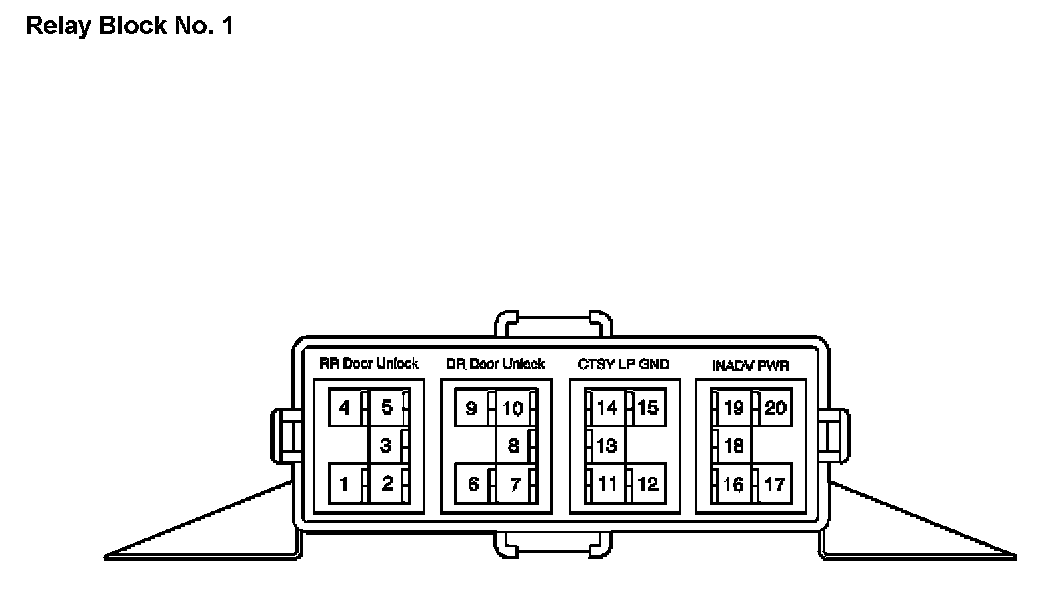

Location View:

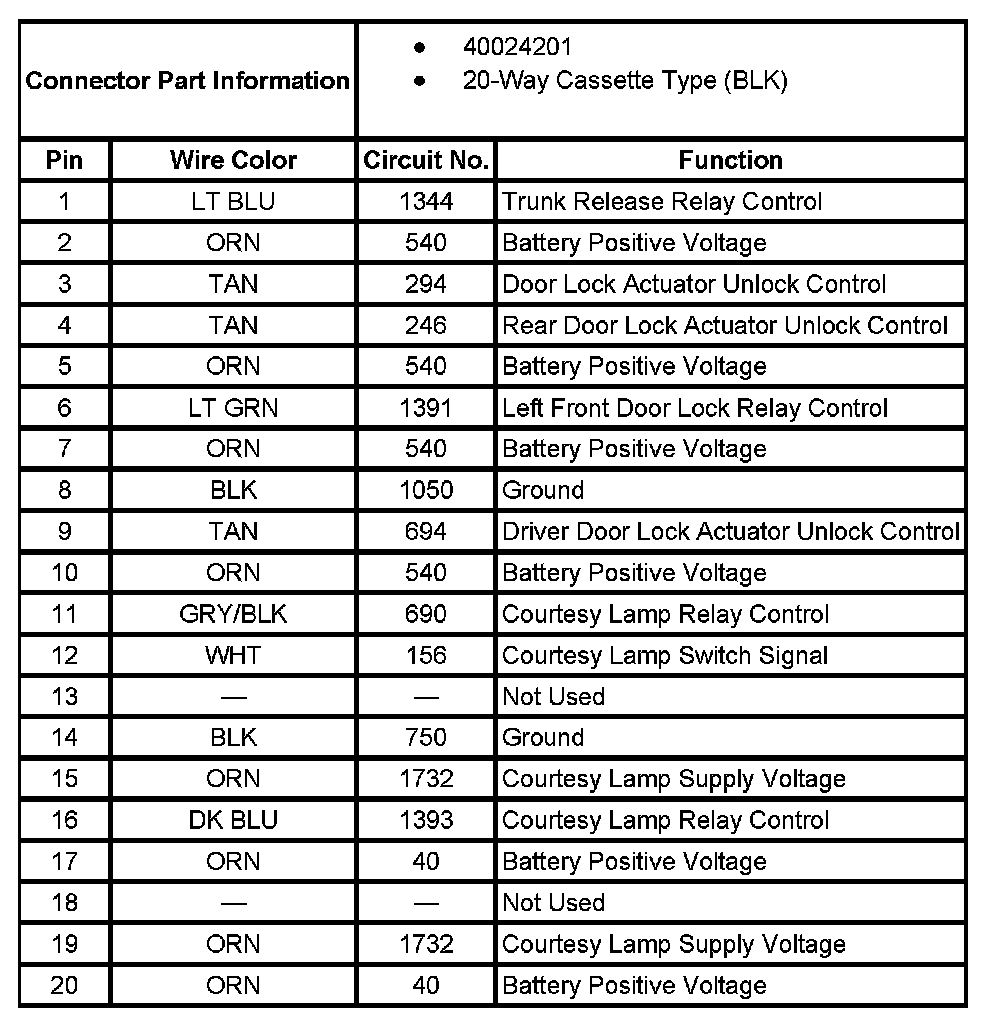

Application Table:
