Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

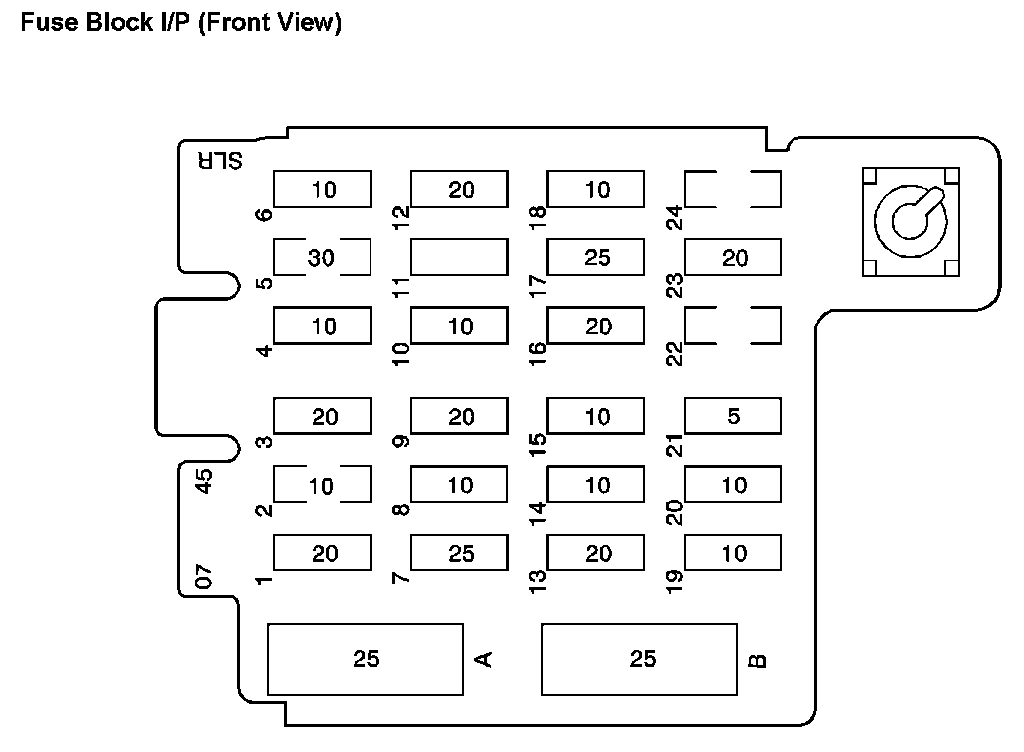

Fuse Block I/P (Front View)
Fuse Block I/P (Front View)
Location View:

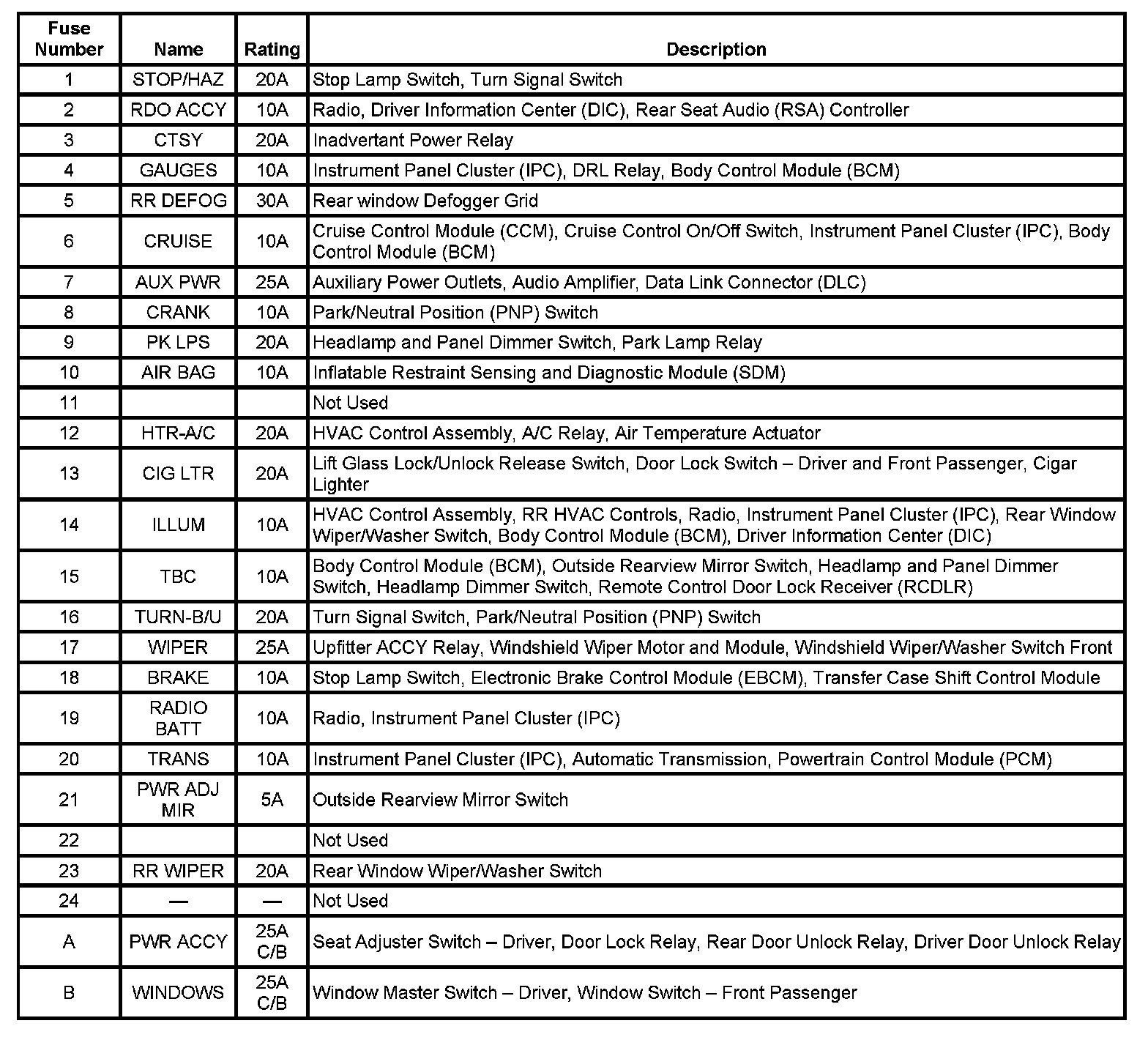

Application Table:
