Instrument Panel (I/P) Lamp Replacement

INSTRUMENT PANEL (I/P) LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument cluster.

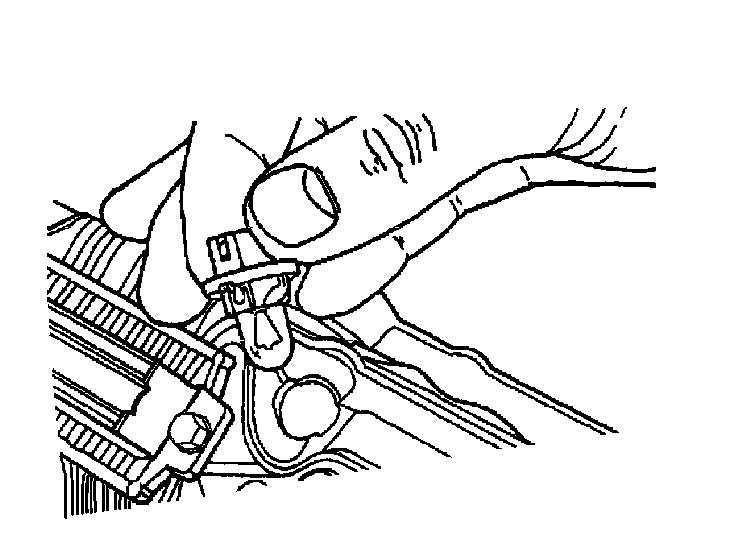

2. Remove the socket and bulb assembly from the back of the cluster.

IMPORTANT: Bulbs and sockets are one-piece units and should not be separated.

INSTALLATION PROCEDURE

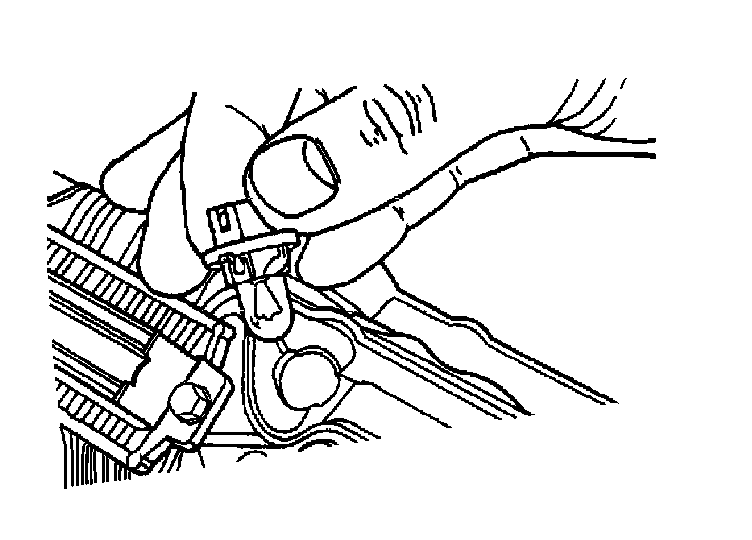

1. Install the socket and bulb assembly to the back of the cluster.
2. Install the instrument cluster.
