Air Outlet Replacement - Left Floor

AIR OUTLET REPLACEMENT - LEFT FLOOR

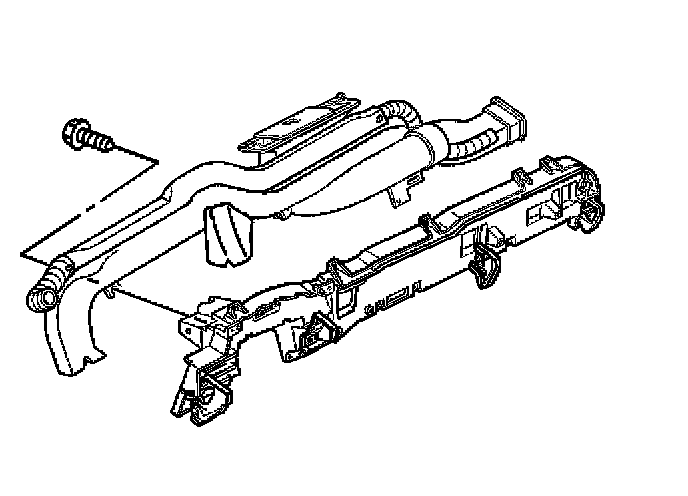

REMOVAL PROCEDURE
1. Remove the instrument panel carrier.




2. Remove the windshield defroster duct.
3. Remove the screws that retain the air outlet duct to the instrument panel carrier.
4. Remove the side window defroster ducts.
5. Remove the air outlet duct from instrument panel.

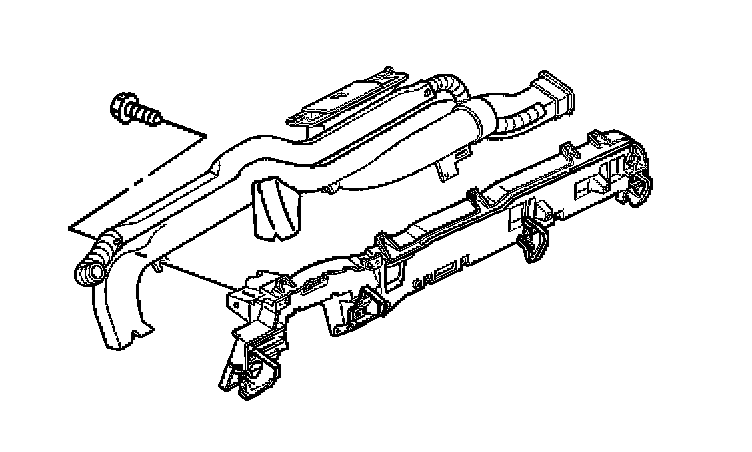

INSTALLATION PROCEDURE




1. Install the air outlet duct to the instrument panel.
2. Install the side window defroster ducts.
3. Install the screws that retain the floor air outlet duct to the instrument panel carrier.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the windshield defroster duct.
5. Install the instrument panel carrier.
