Air Outlet Duct Replacement - Left Lap

AIR OUTLET DUCT REPLACEMENT - LEFT FLOOR

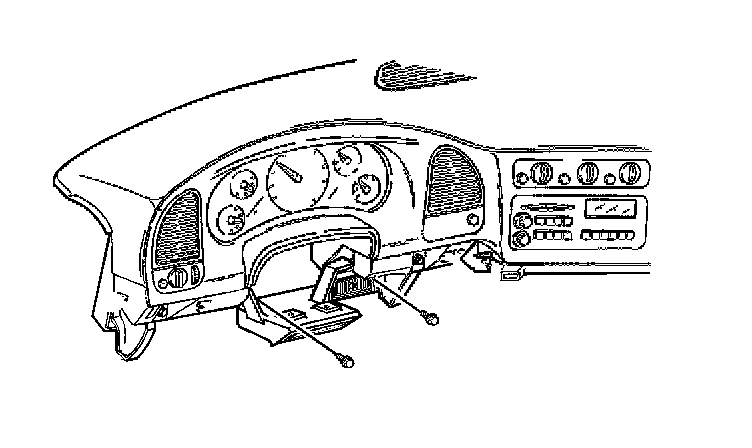

REMOVAL PROCEDURE
1. Remove the left knee bolster.




2. Remove the screws that retain the outlet duct.
3. Remove the duct from the air distribution duct.

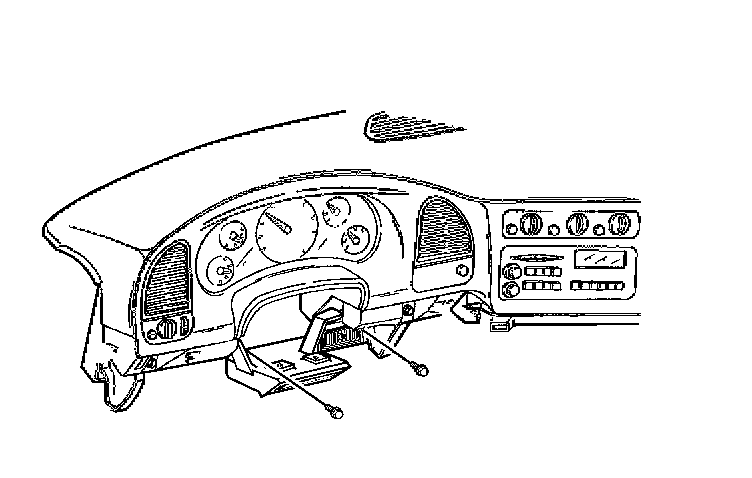

INSTALLATION PROCEDURE
1. Install the duct to the air distribution duct.




2. Install the outlet duct.
3. Install the screws that retain the outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the left knee bolster.
