Coolant Reservoir: Service and Repair

Coolant Recovery Reservoir Replacement
Removal Procedure





1. Reposition the coolant recovery hose clamp from the coolant recovery reservoirs.
2. Remove the coolant recovery hose from the coolant recovery reservoirs.

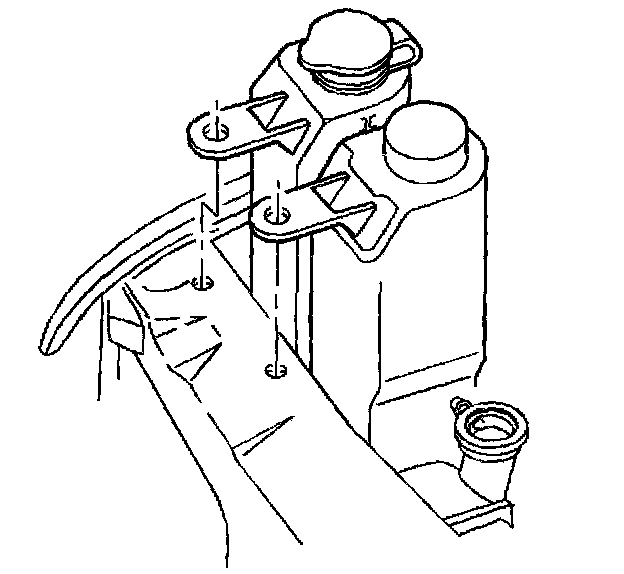

3. Remove the push pin retainers.

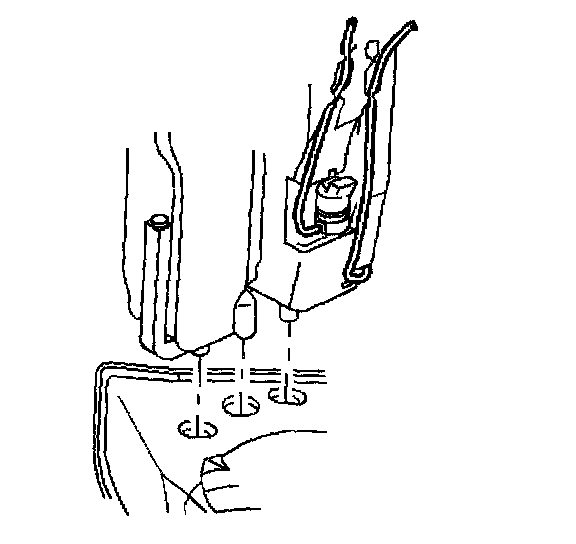

4. Disconnect the electrical connectors from the windshield washer pumps.
5. Remove the windshield washer hoses from the windshield washer pumps.

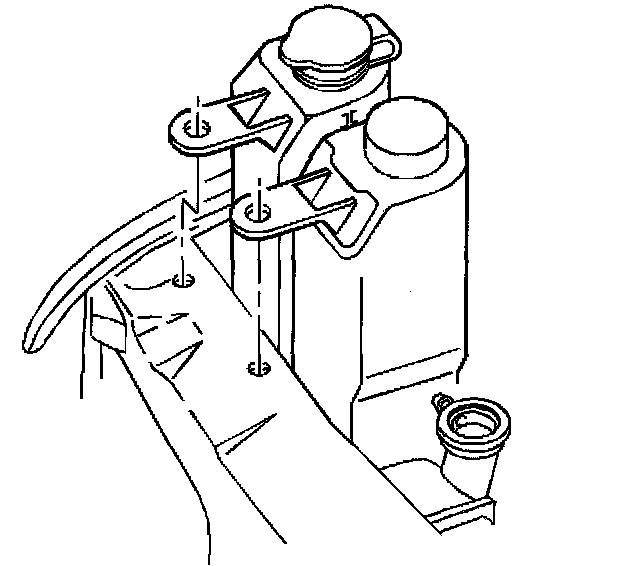

6. Remove the coolant recovery reservoir and windshield washer assembly.
7. If replacing, separate the 2 reservoirs.
8. Drain the coolant in the reservoir.

Installation Procedure

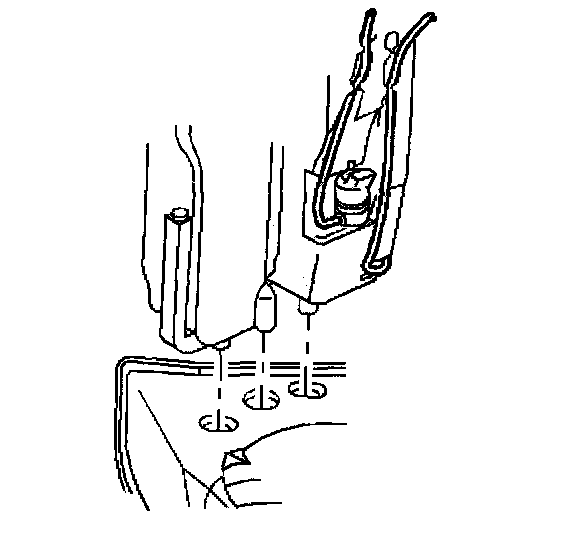

1. Connect the electrical connectors to the windshield washer pumps.
2. Install the windshield washer hoses to the windshield washer pumps.





3. Install the coolant recovery reservoir and windshield washer assembly.

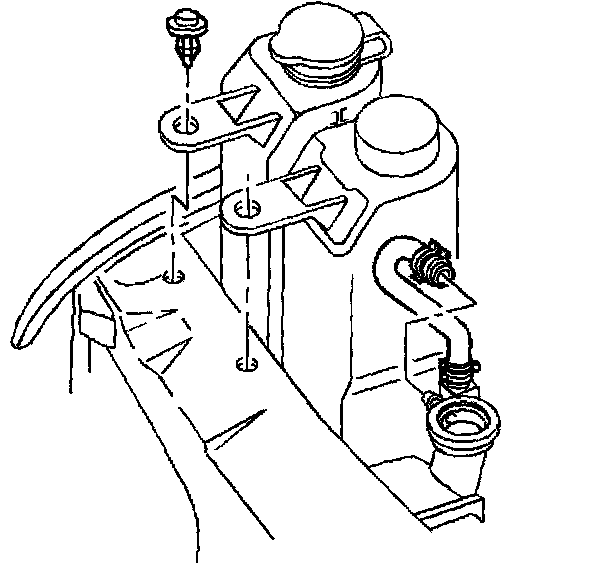

4. Install the push pin retainers.
5. Install the coolant recovery reservoir hose.
6. Reposition the coolant recovery hose clamp to the coolant recovery reservoirs.
7. Refill the coolant recovery reservoir.
