Chevy Truck
>>
2004
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>

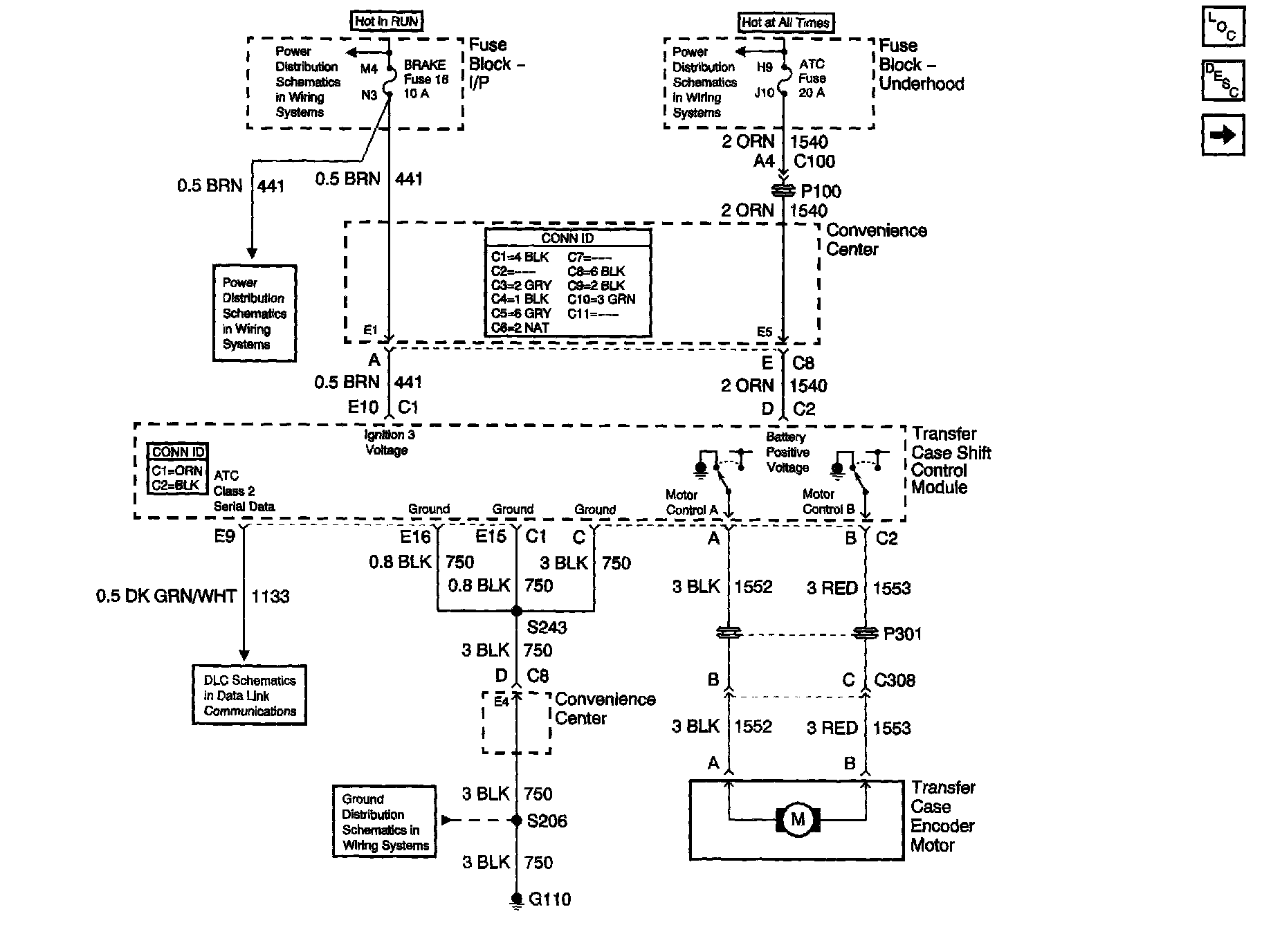

Power, Ground, DLC, Transfer Case Encoder Motor
Power, Ground, DLC, Transfer Case Encoder Motor
