Chevy Truck
>>
2004
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brakes and Traction Control
>>
System Diagram
System Diagram

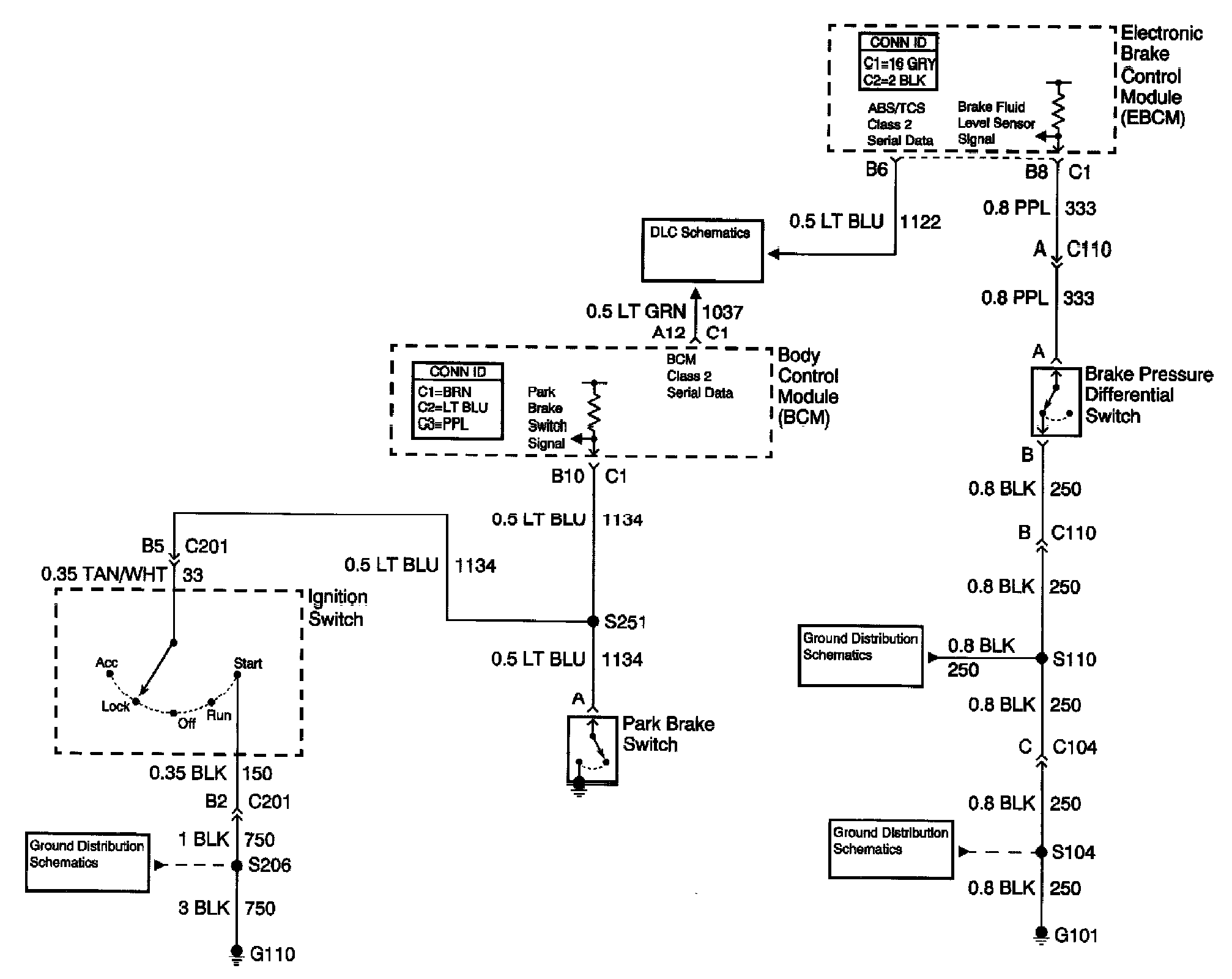

Brake Warning System Diagram:
