Home
>>
Chevy Truck
>>
2004
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
High Pressure Sensor / Switch, HVAC
High Pressure Sensor / Switch, HVAC

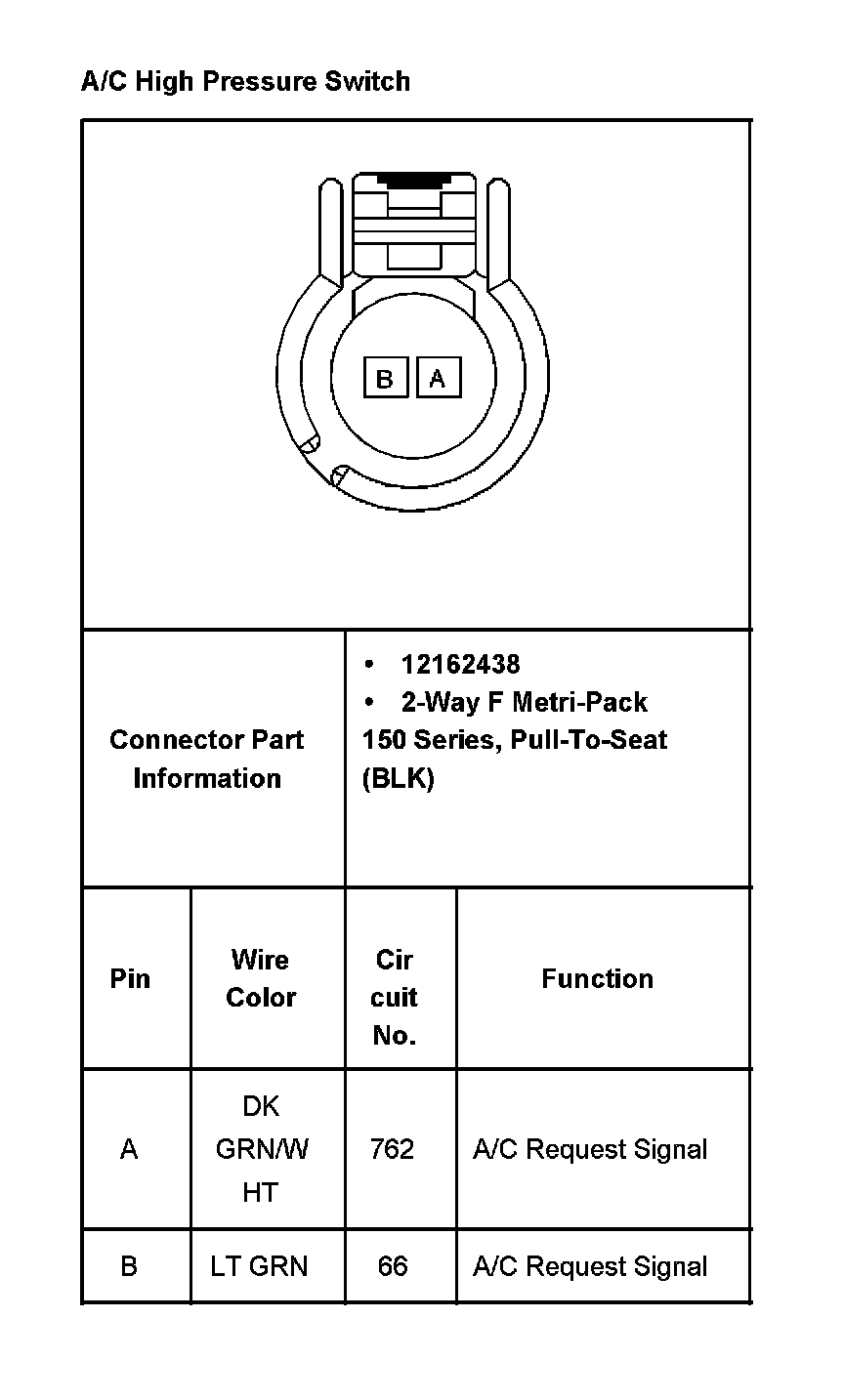

A/C High Pressure Switch:
