Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Resistor
>>
Blower Motor Resistor Assembly
Blower Motor Resistor Assembly

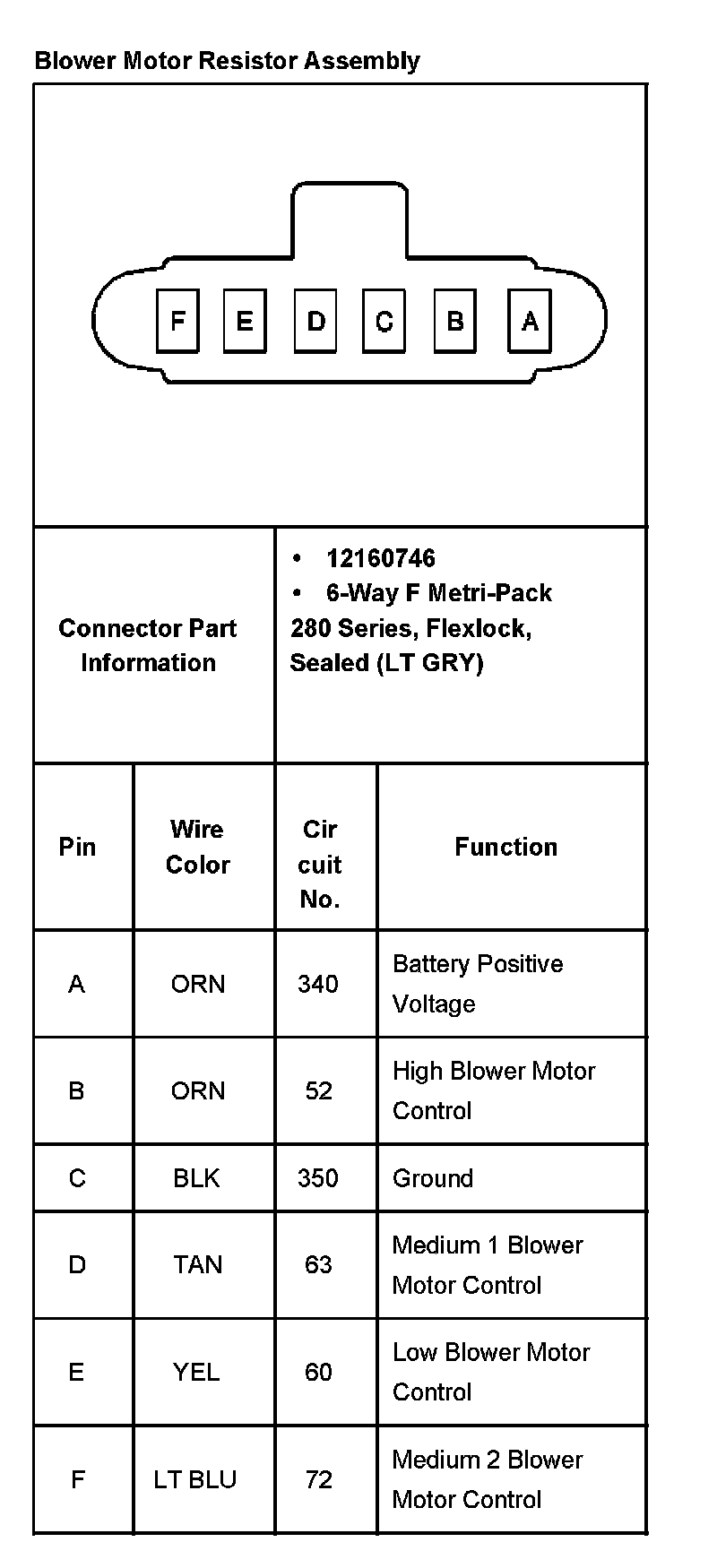

Blower Motor Resistor Assembly:
