Brake Assist System Diagnosis

Brake Assisted System (Hydraulic Assist) / Steps 1 Through 9:

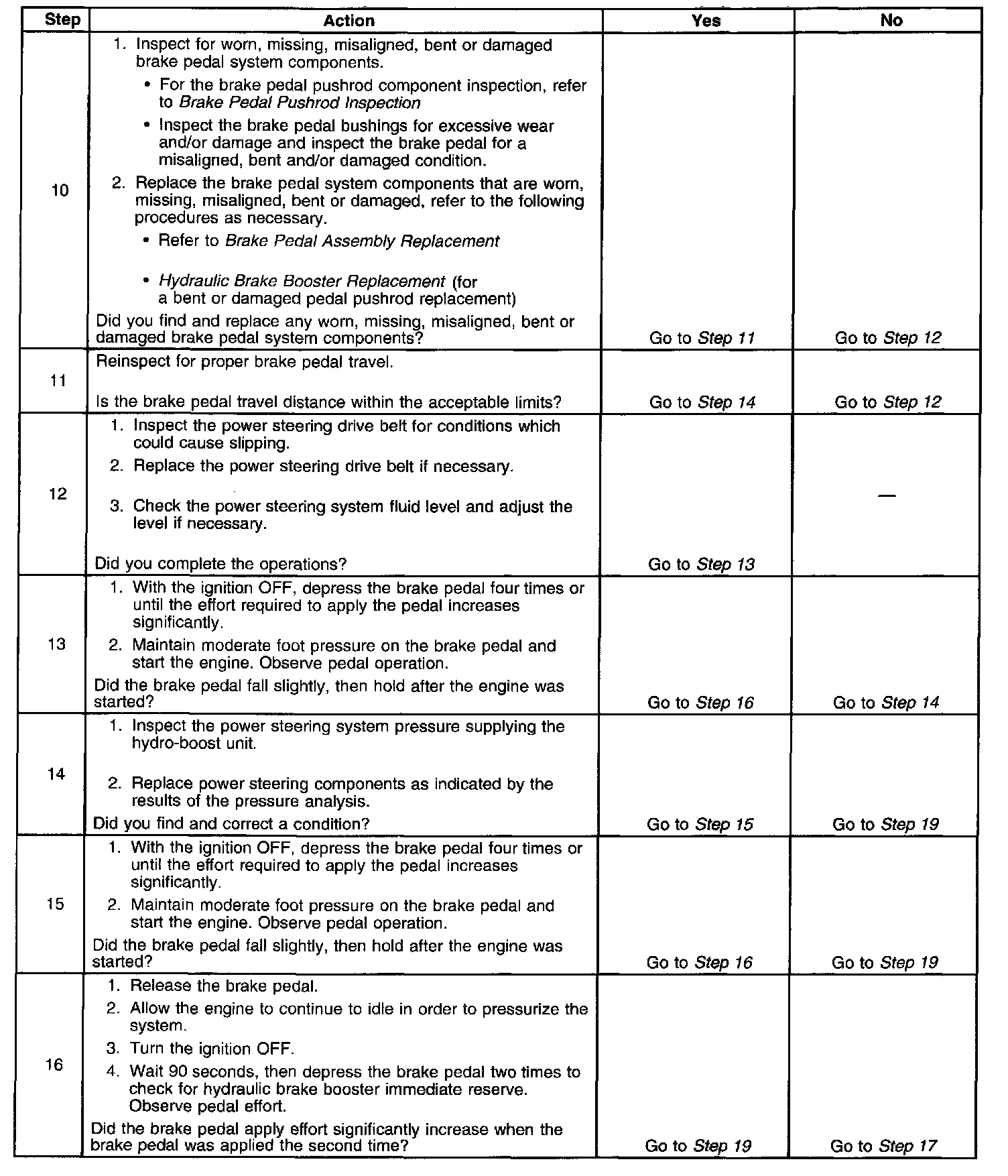

Brake Assisted System (Hydraulic Assist) / Steps 10 Through 16:

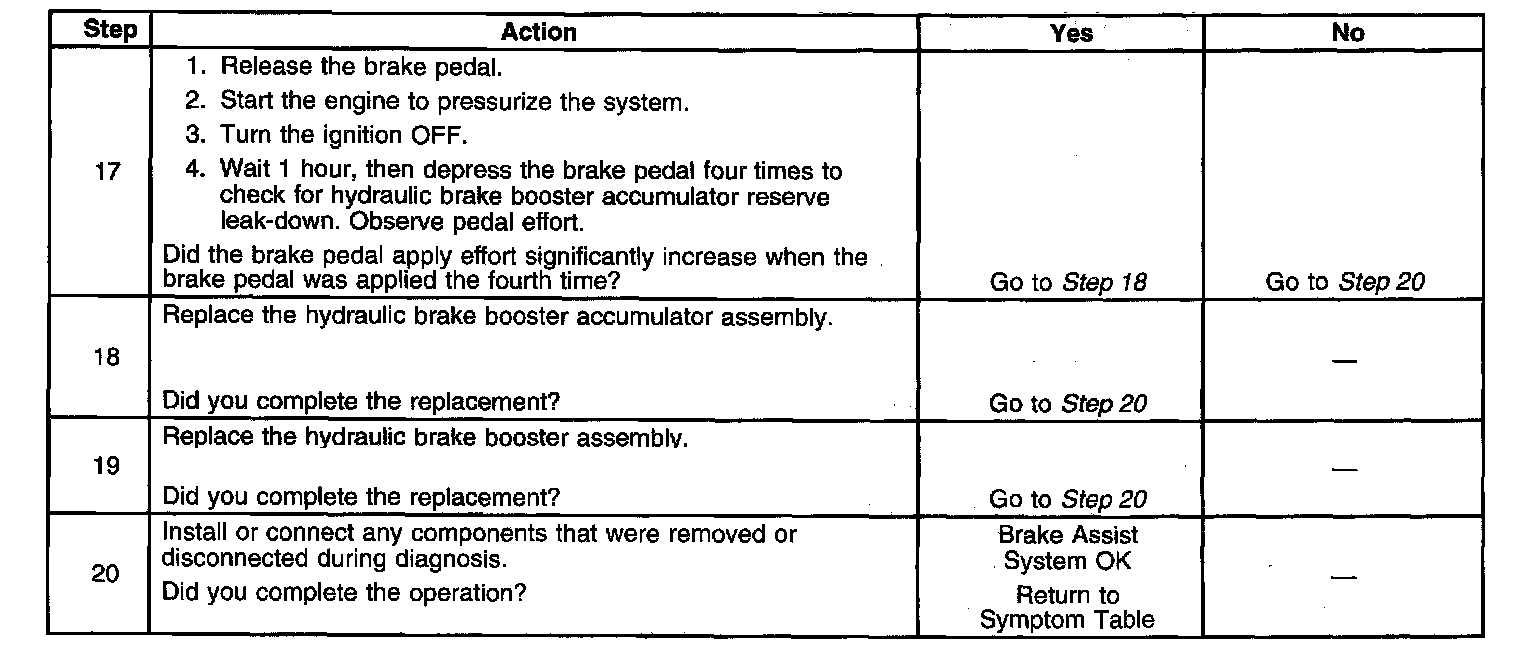

Brake Assisted System (Hydraulic Assist) / Steps 17 Through 20:
