Garnish Molding Replacement - Rear Upper

GARNISH MOLDING REPLACEMENT - REAR UPPER

REMOVAL PROCEDURE

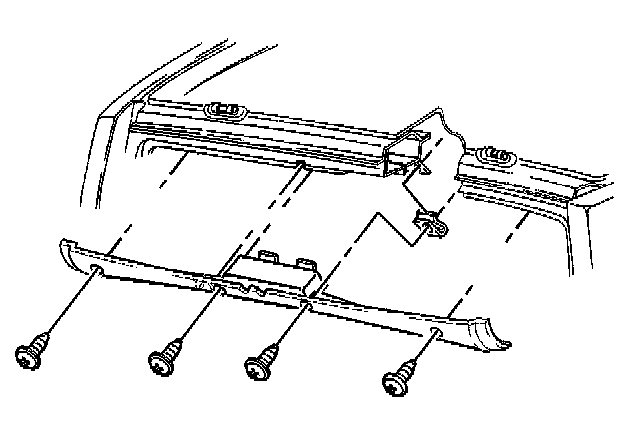

1. Remove the screws that retain the door frame garnish molding to the vehicle.




2. Remove the door frame garnish molding.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.




2. Install the molding to the roof.
3. Install the roof retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the roof retaining screws to 2 N.m (18 lb in).
