Speaker Replacement - Front Lower

SPEAKER REPLACEMENT - FRONT LOWER

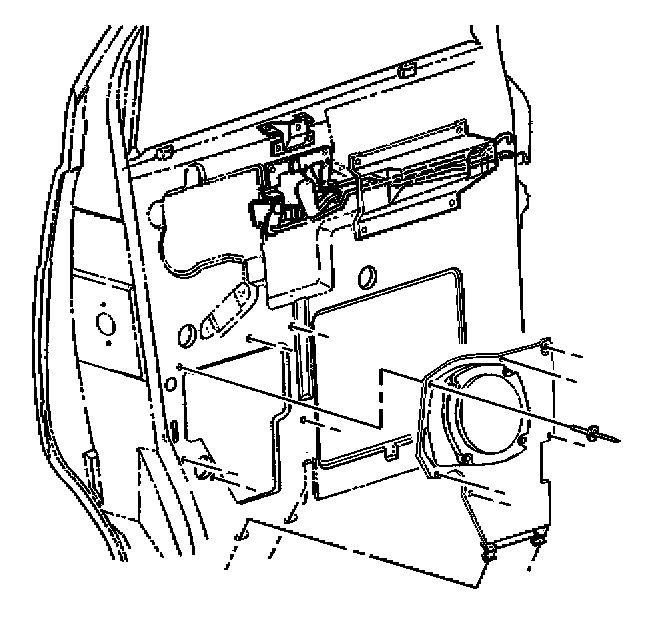

REMOVAL PROCEDURE
1. Remove the door trim panel.




2. Remove the mounting screws.
3. Remove the speaker from the door.
4. Disconnect the electrical connector from the speaker.

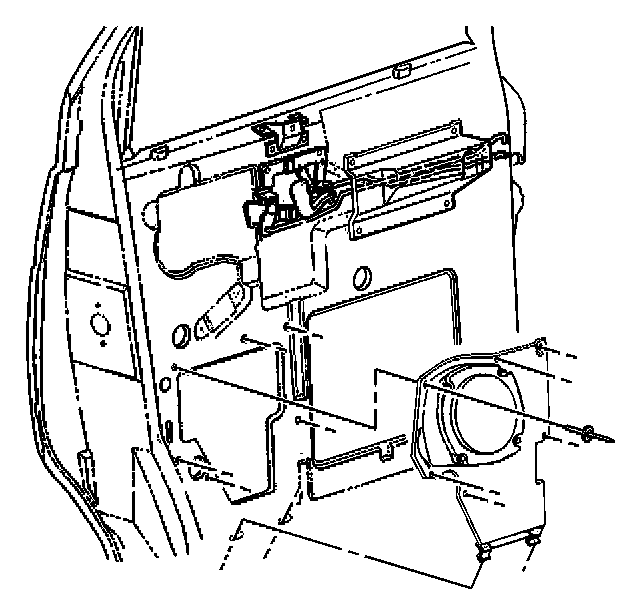

INSTALLATION PROCEDURE




1. Connect the electrical connector to the speaker.
2. Install the speaker to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the speaker mounting screws.

Tighten
Tighten the speaker mounting screws to 2 Nm (18 lb in).

4. Verify component operation.
5. Install the door trim panel.
