Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

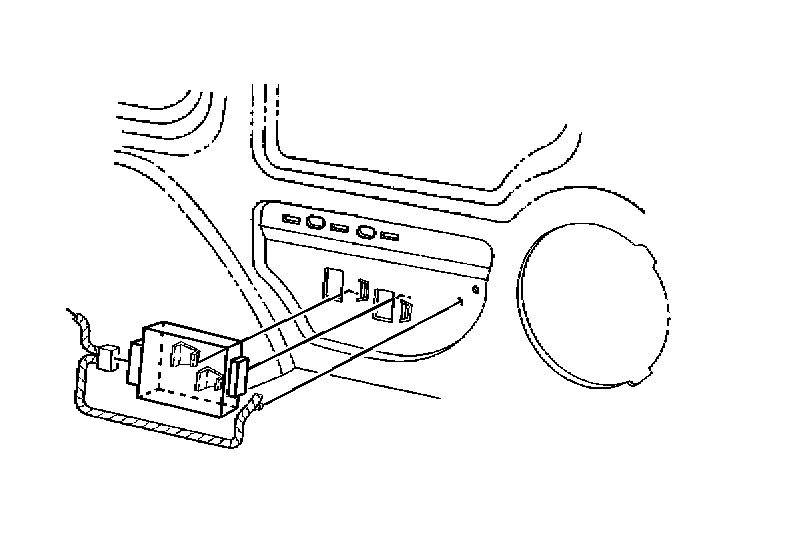

REMOVAL PROCEDURE

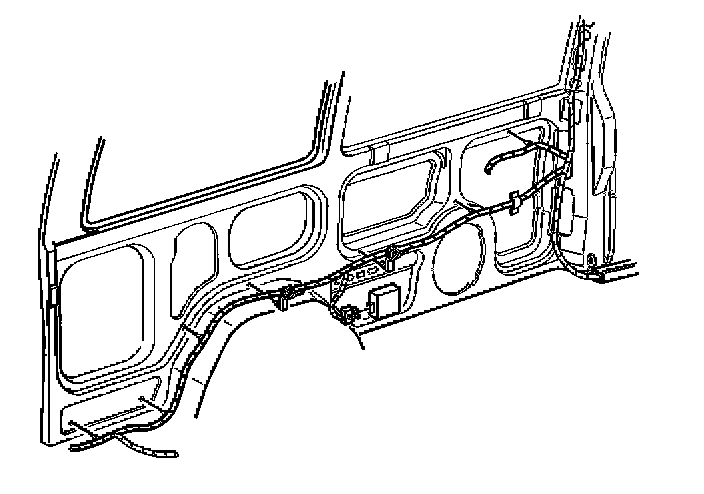

1. Remove the body side front lower trim panel.




2. Disconnect the electrical connector from the amplifier.




3. Remove the amplifier from the vehicle by sliding the amplifier toward the rear of the vehicle.

INSTALLATION PROCEDURE

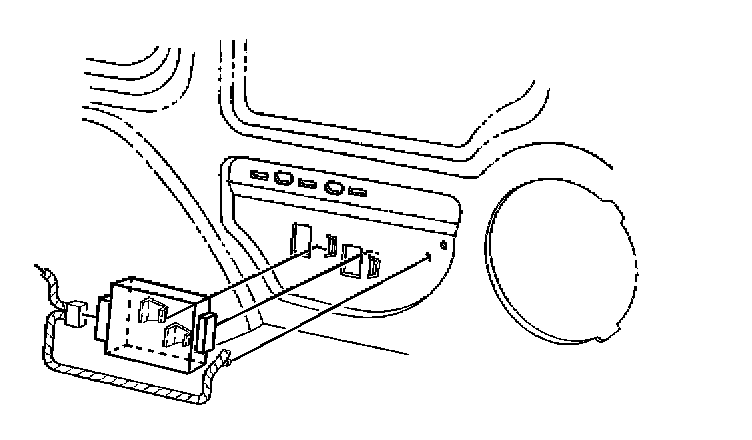

1. Align the mounting tabs and slide the amplifier toward the front of the vehicle in order to install the amplifier to the vehicle.




2. Connect the electrical connector to the amplifier.

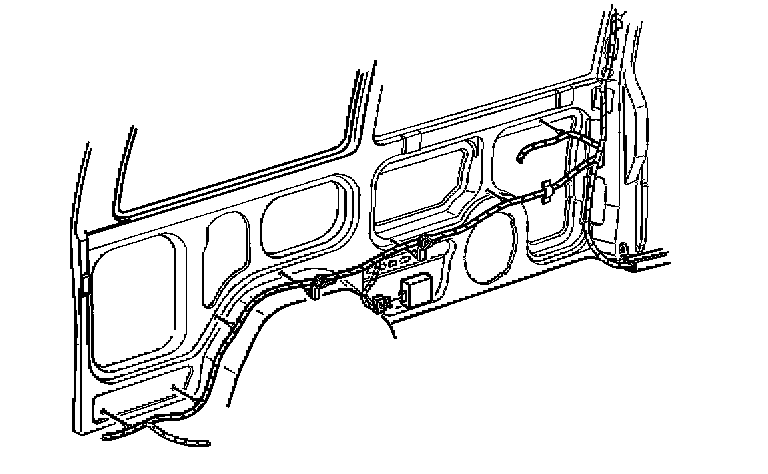

3. Install the body front lower trim panel.
