Garage Door Opener Replacement
GARAGE DOOR OPENER REPLACEMENTREMOVAL PROCEDURE

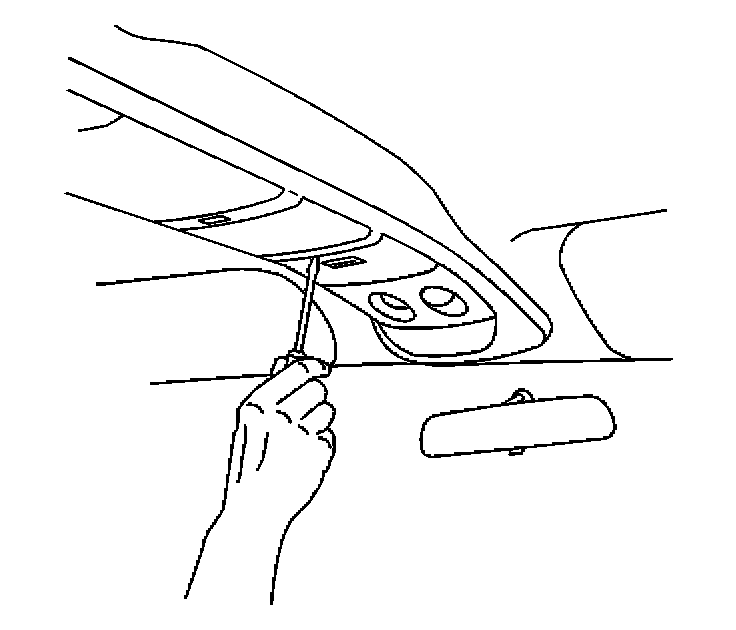

1. Release the barbed tab at the center of the access panel.

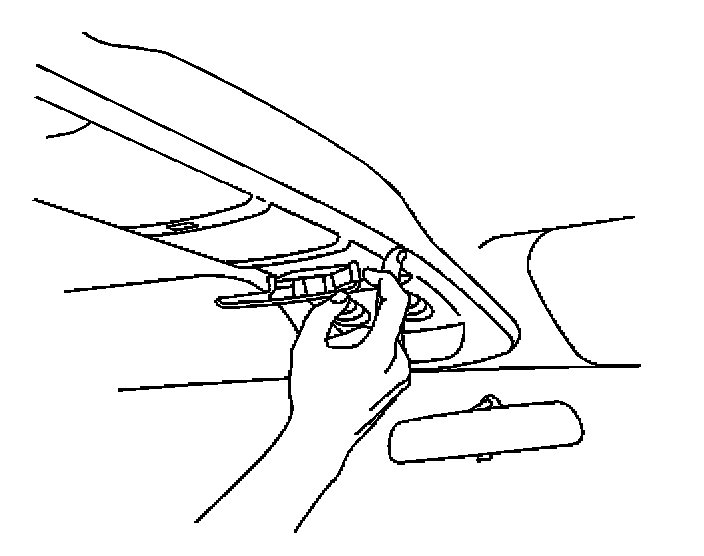

2. Swing the panel down and forward in order to access the module.
3. Disconnect the electrical connector from the module and switch assembly.

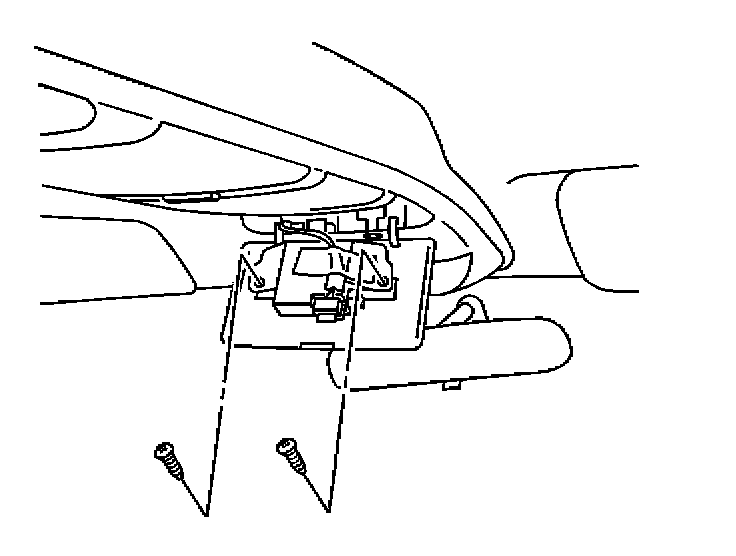

4. Remove the screws that retain the garage door opener and the switch assembly to the console.
5. Remove the opener and the switch assembly from the console.
INSTALLATION PROCEDURE
1. Align the LED indicator with the hole in the access panel when setting the opener into place.
2. Install the opener and the switch assembly to the console.
NOTE: Refer to Fastener Notice in Service Precautions.

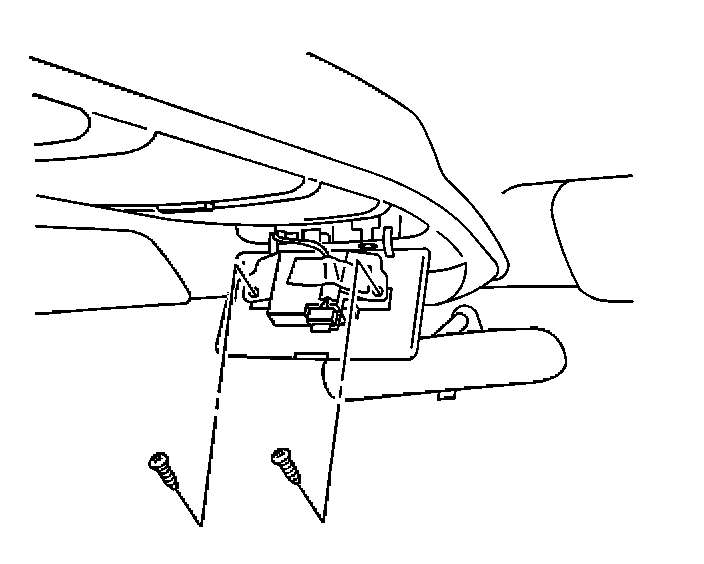

3. Install the screws that retain the opener and the switch assembly to the console.
Tighten
Tighten the screws to 2 Nm (18 lb in).
4. Connect the electrical connector to the opener and the switch assembly.

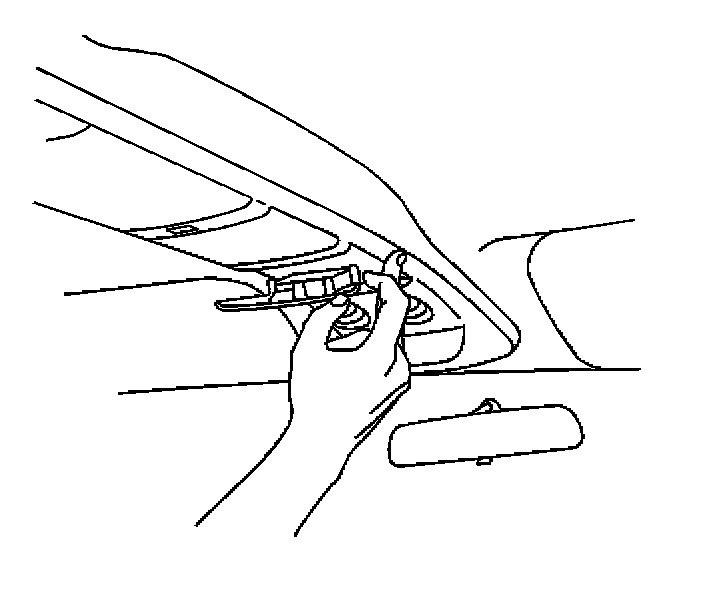

5. Swing the access panel up and rearward in order to close the access panel.

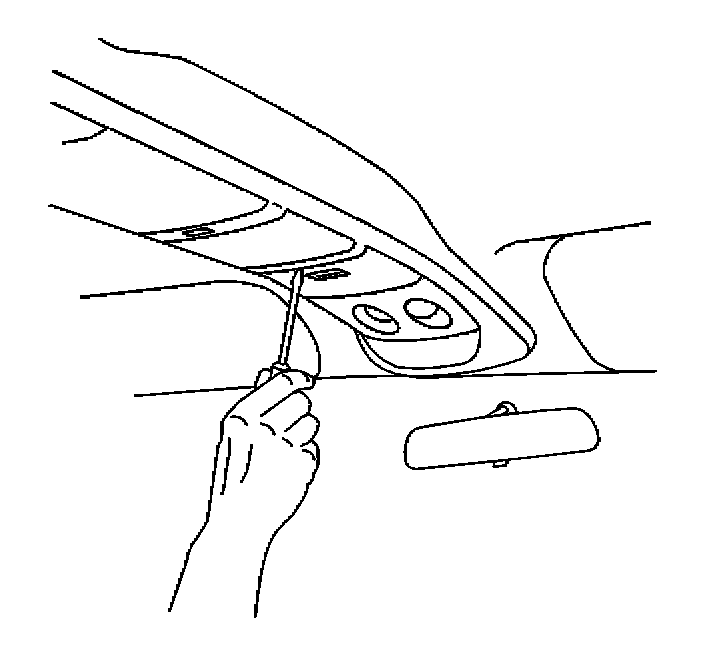

6. Snap the barbed tab into place in the console.
