Power Brake Booster Inlet Hose Replacement

Power Brake Booster Inlet Hose Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

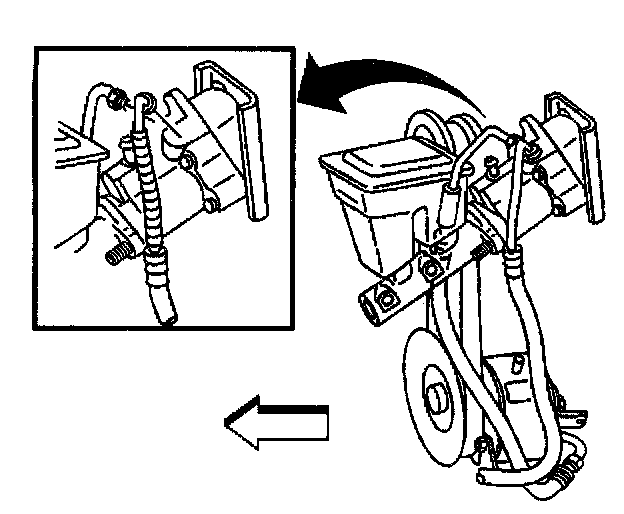

2. Disconnect the hydraulic brake booster inlet hose from the of the power steering pump.
3. Lower the vehicle.

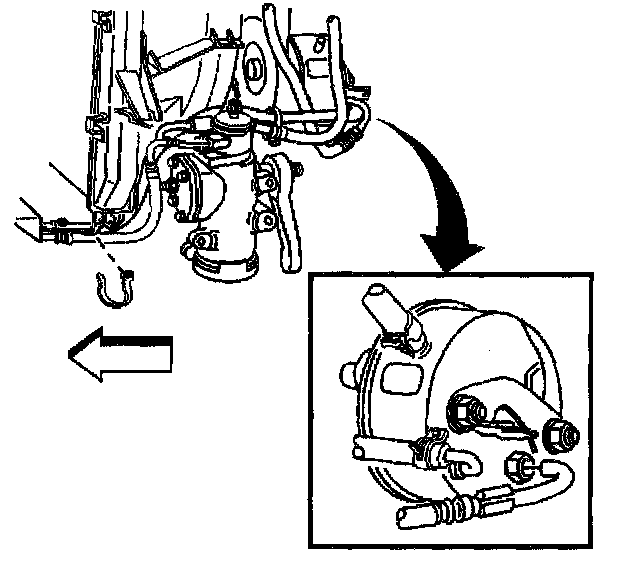

4. Disconnect the hydraulic brake booster inlet hose from the hydraulic brake booster.
5. Remove the hydraulic brake booster inlet hose from vehicle.

Installation Procedure

Notice: Do not start the engine with any power steering hose disconnected, or damage to the components could occur.





1. Install the hydraulic brake booster inlet hose to vehicle.
2. Connect the hydraulic brake booster inlet hose to the hydraulic brake booster.
3. Raise the vehicle. Refer to Vehicle Lifting.





Notice: Refer to Fastener Notice in Service Precautions.

4. Connect the hydraulic brake booster inlet hose to the power steering pump.
- Tighten the hydraulic brake booster inlet hose to the power steering pump to 27 Nm (20 ft. lbs.).
5. Bleed the system.
