Air Distributor Duct Replacement
AIR DISTRIBUTOR DUCT REPLACEMENTREMOVAL PROCEDURE

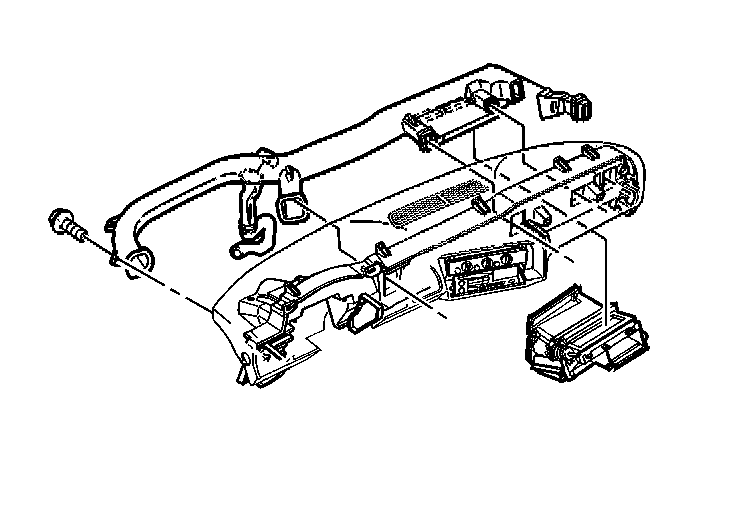

1. Remove the IP assembly.
2. Remove the left floor air outlet.

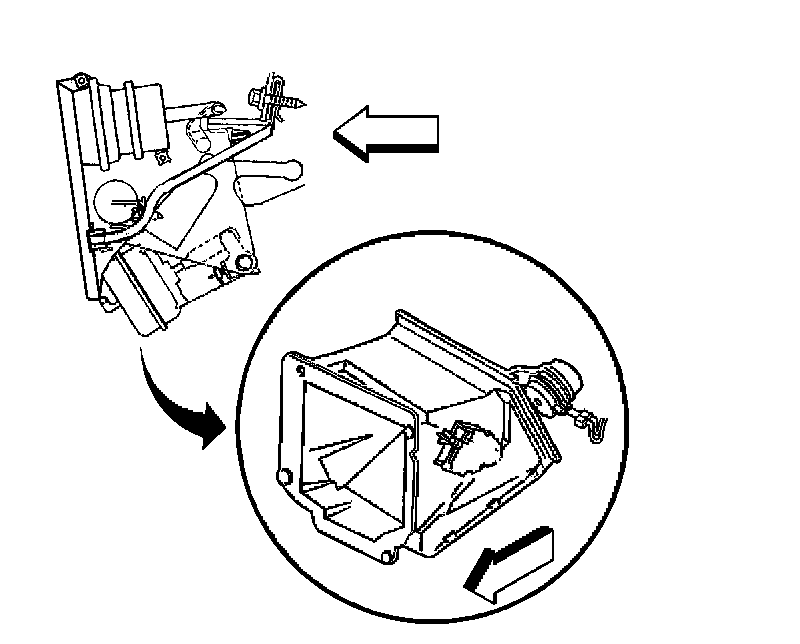

3. Remove the retaining screw at the IP assembly on the left side of the duct.
4. Remove the retaining clips from the air distributor assembly.
5. Remove the duct from the IP vent extensions.
6. Remove the air distributor duct from the IP.
INSTALLATION PROCEDURE

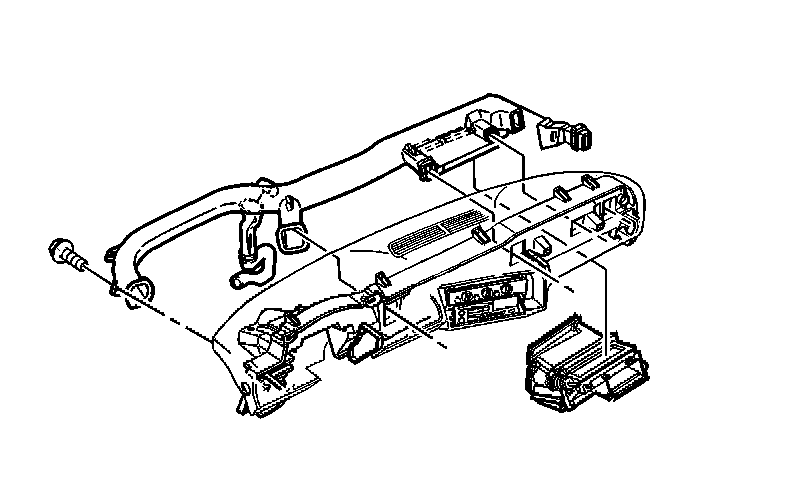

1. Install the air distributor duct to the IP.
2. Install the air distributor duct to the IP vent extensions.
3. Install the retaining clips to the air distributor assembly.

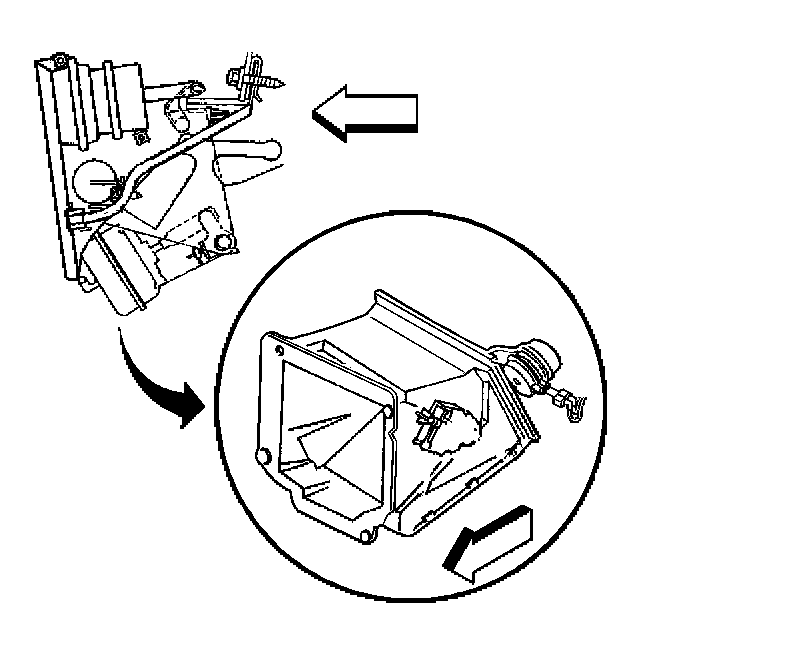

4. Install the retaining screws to the IP carrier on the left side of the duct.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to the IP carrier on the left side of the duct to 2 N.m (18 lb in).
5. Install the left floor air outlet.
6. Install the IP carrier.
