Power Door Lock Actuator: Locations

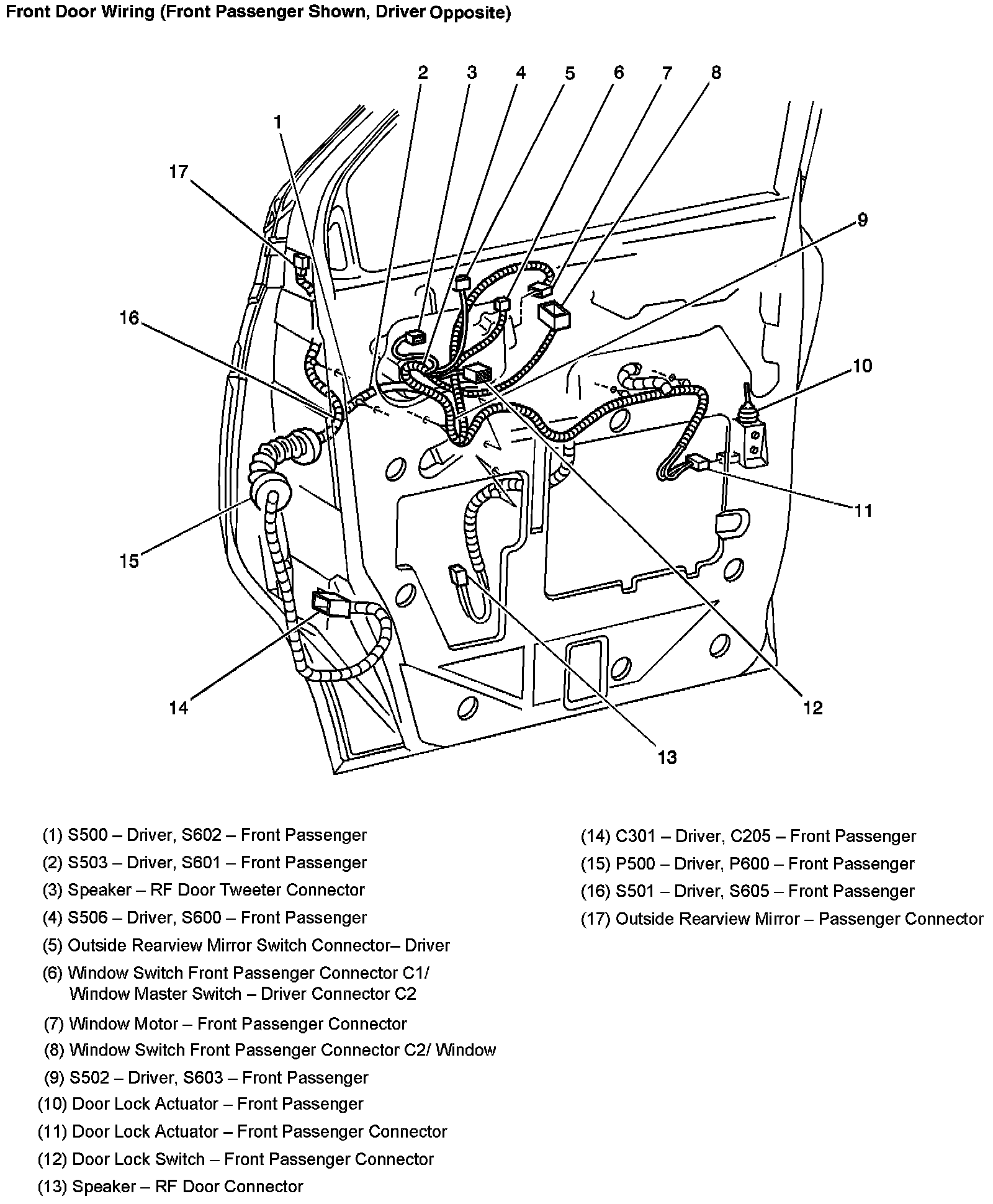

Front Door Wiring (Front Passenger Shown, Driver Opposite):

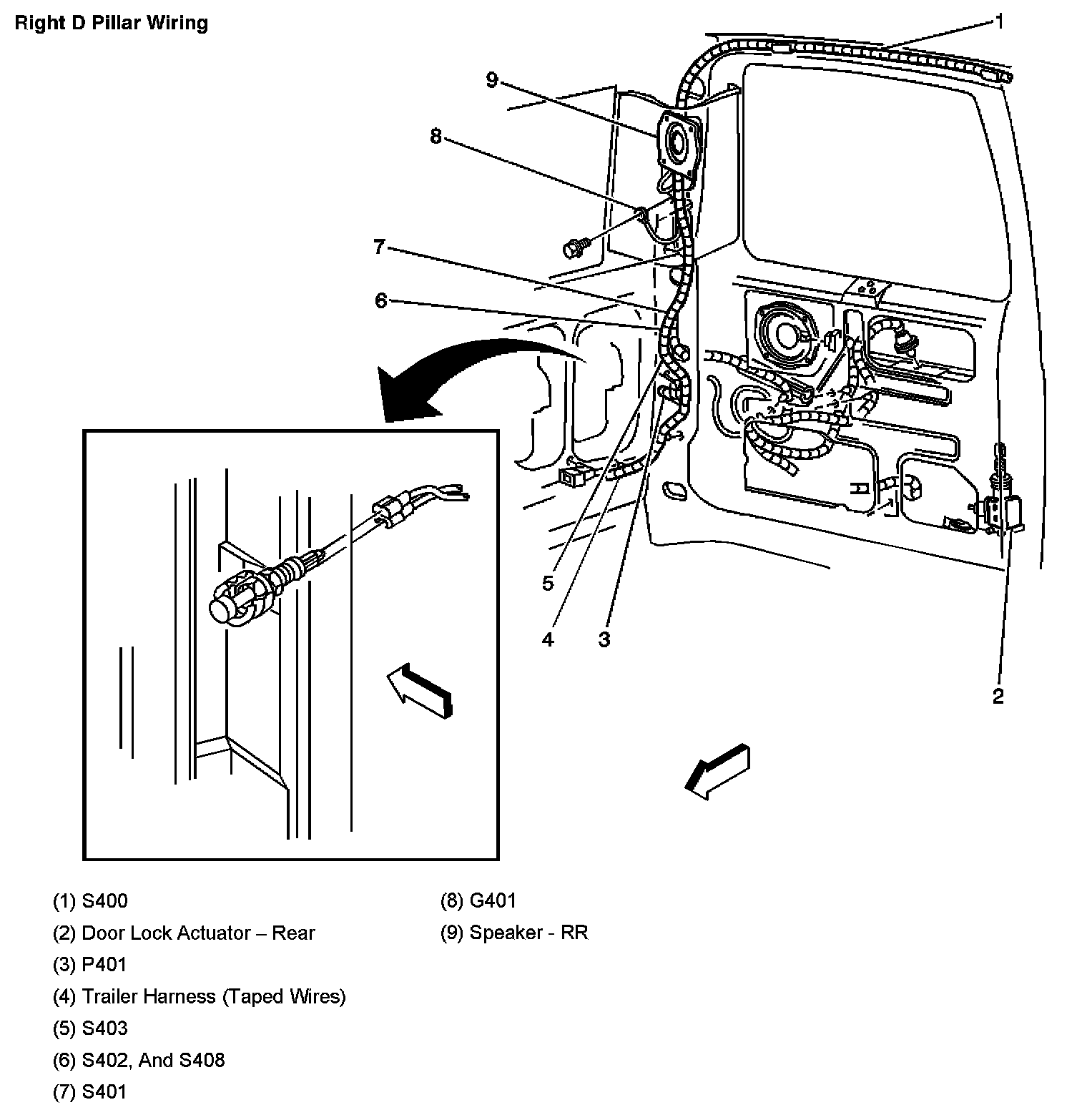

Right D Pillar Wiring:
Door Location View - RR:
