Home >> Chevy Truck >> 2003 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oil Level Sensor

Oil Level Sensor

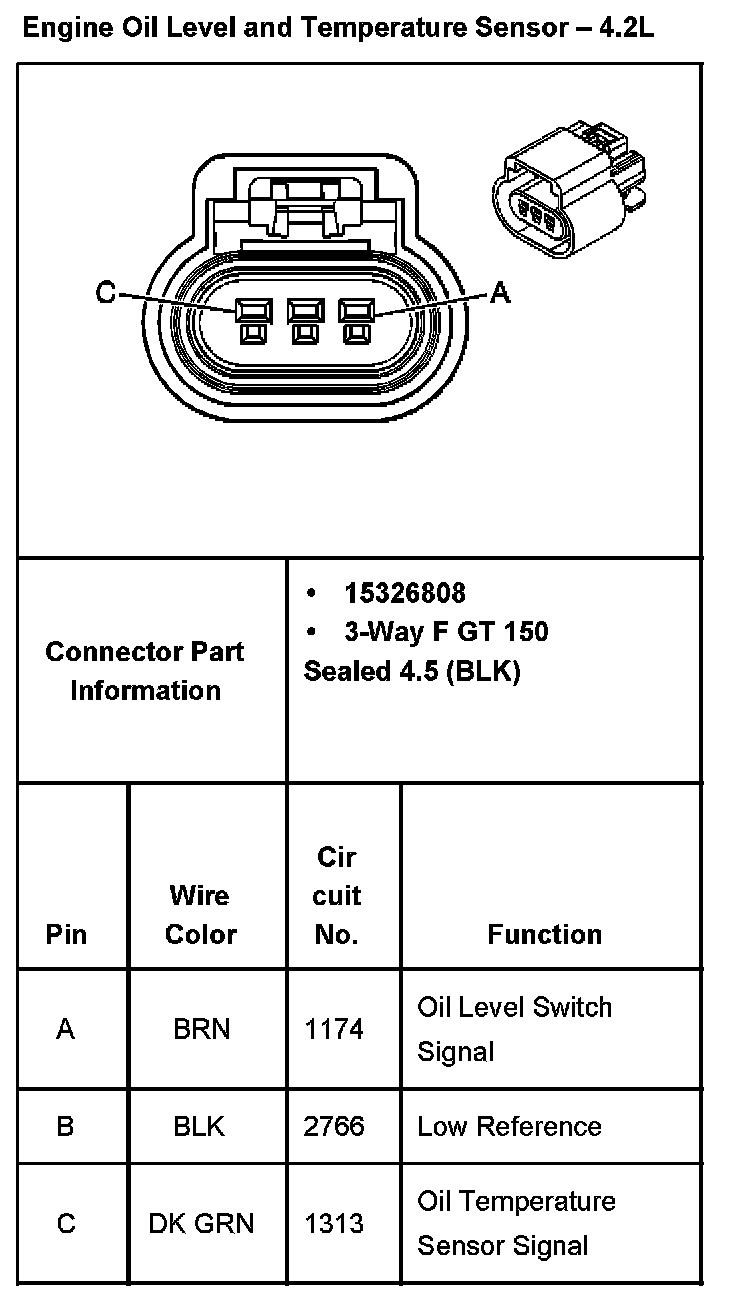

Engine Oil Level And Temperature Sensor:

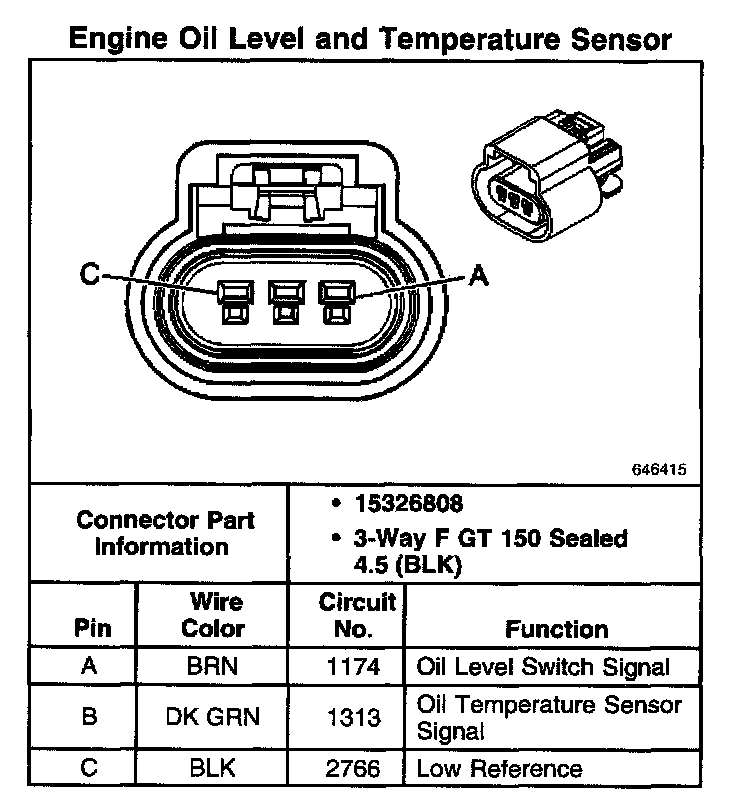

Engine Oil Level and Temperature Sensor:
