Video Cassette Player / Recorder: Service and Repair

VIDEO PLAYER BRACKET REPLACEMENT

REMOVAL PROCEDURE
1. Remove the video display assembly.

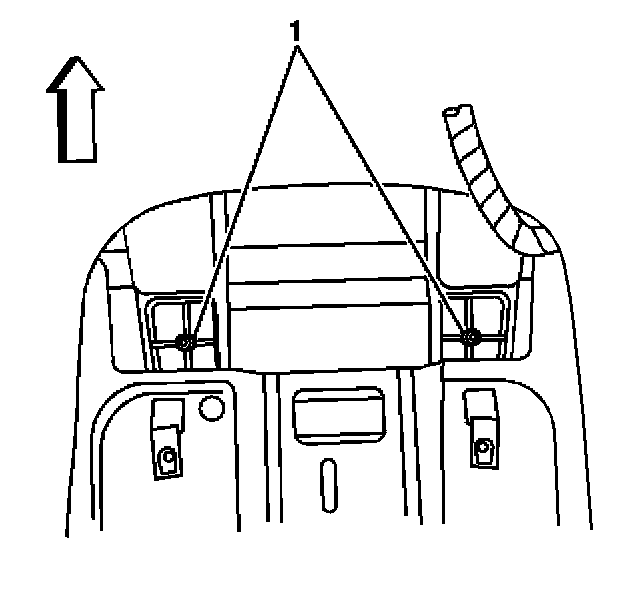

2. Remove the two rear overhead console carrier screws (1).

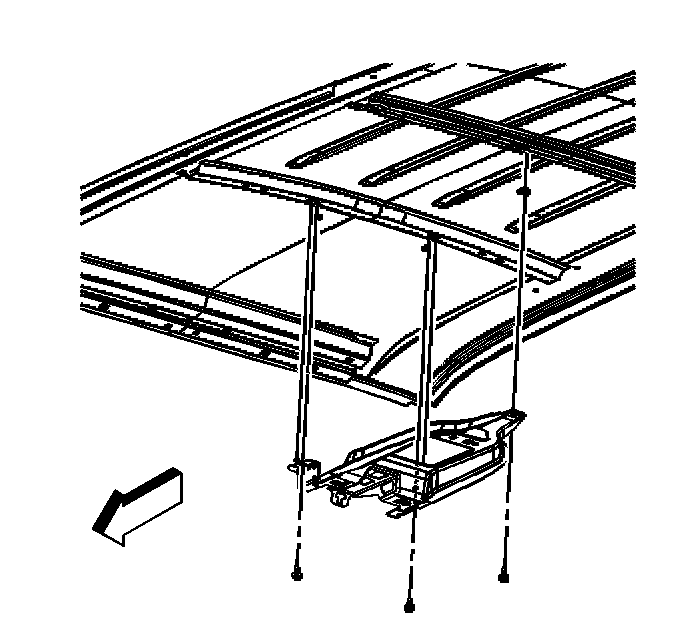

3. Remove the front bracket retaining bolts.

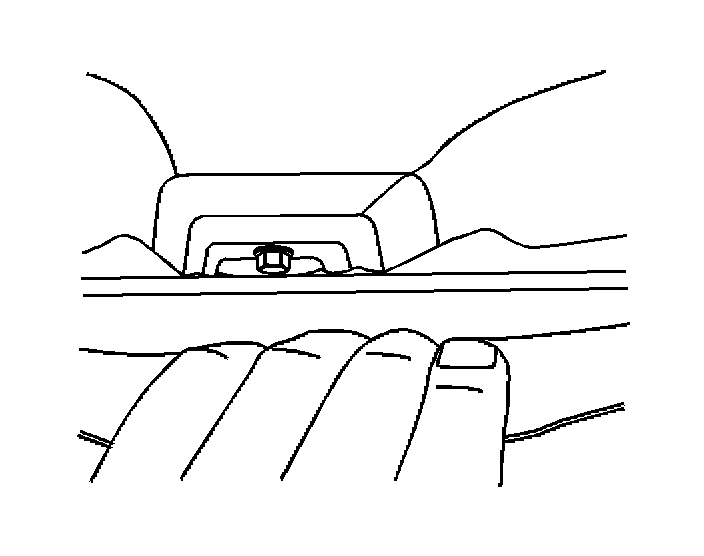

4. Carefully pull down on the rearward edge of the headliner in order to expose the rear bracket retaining bolt.
5. Remove the rear retaining bolt.
6. Carefully remove the bracket from the vehicle through the headliner opening.

INSTALLATION PROCEDURE

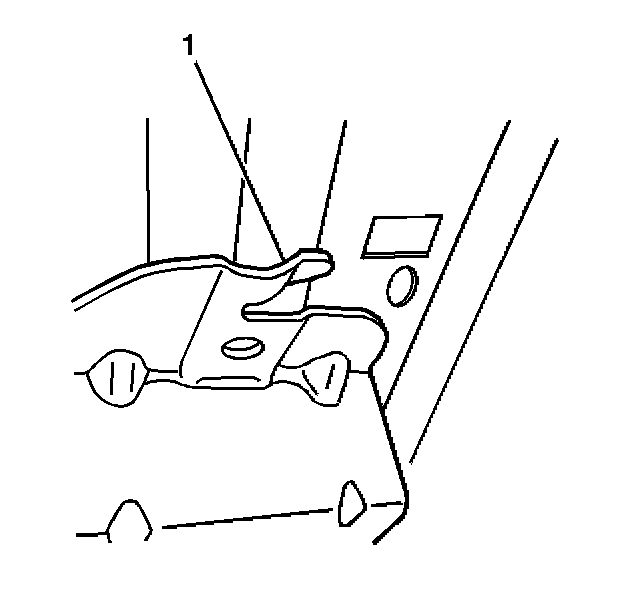

1. Carefully install the bracket to the vehicle through the headliner opening, ensuring the locating tabs (1) are fully seated to the roof bow.

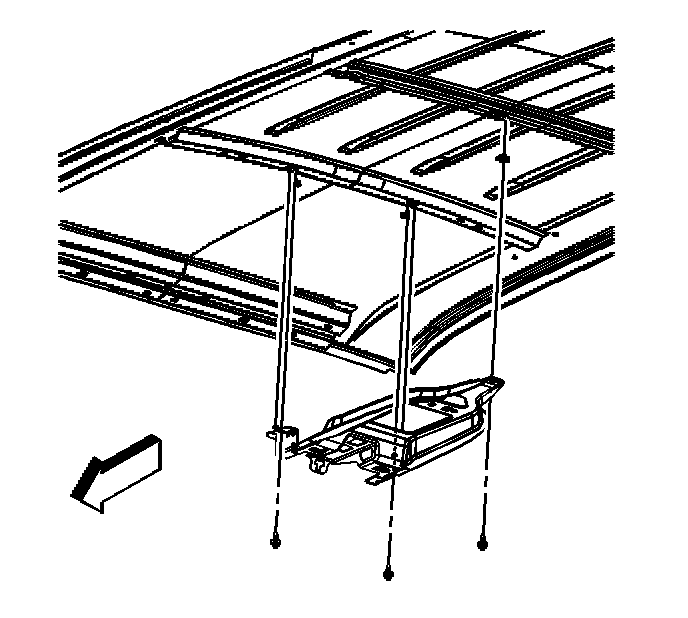

2. Partially install the front bracket retaining bolts.

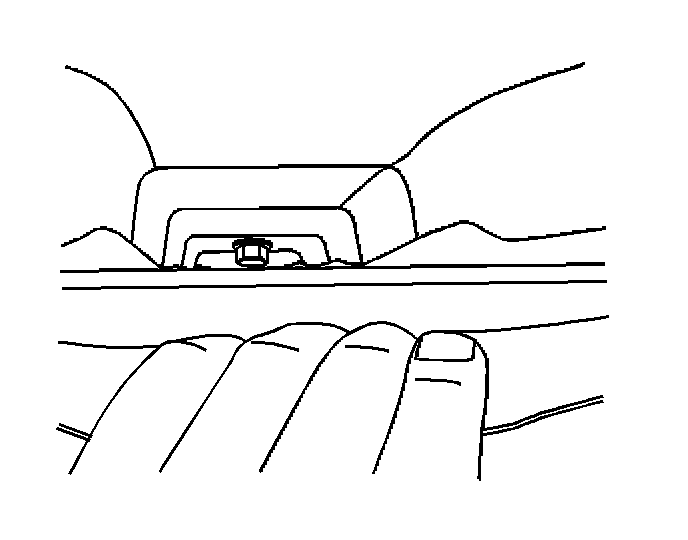

3. Carefully pull down on the rearward edge of the headliner in order to expose the rear bolt installation area.
4. Partially install the rear bracket retaining bolt.
5. Fully seat the retaining bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 10 N.m (88 lb in).

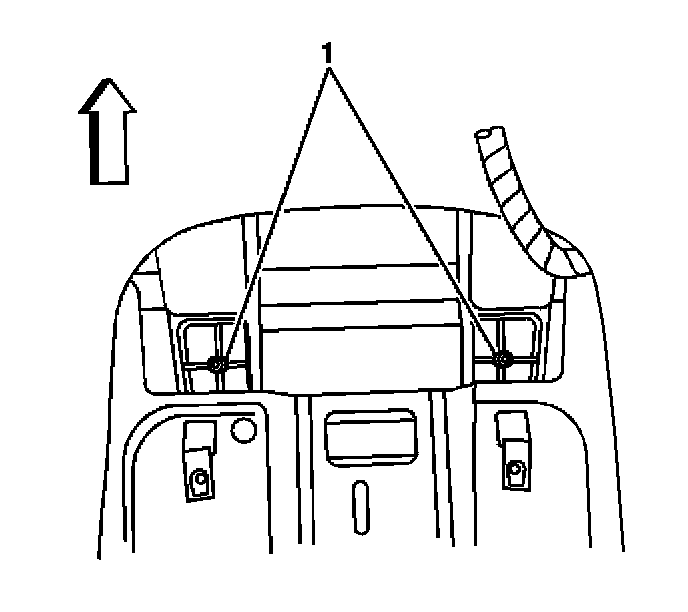

6. Install the two rear overhead console carrier screws (1).

Tighten
Tighten the screws to 1.2 N.m (10 lb in).

7. Install the video display assembly.
8. Verify the video display for proper operation.
9. Close the video display screen.
10. Install the bolt cover bezel.
