Positive Crankcase Ventilation Valve: Service and Repair

Positive Crankcase Ventilation (PCV) Valve Replacement

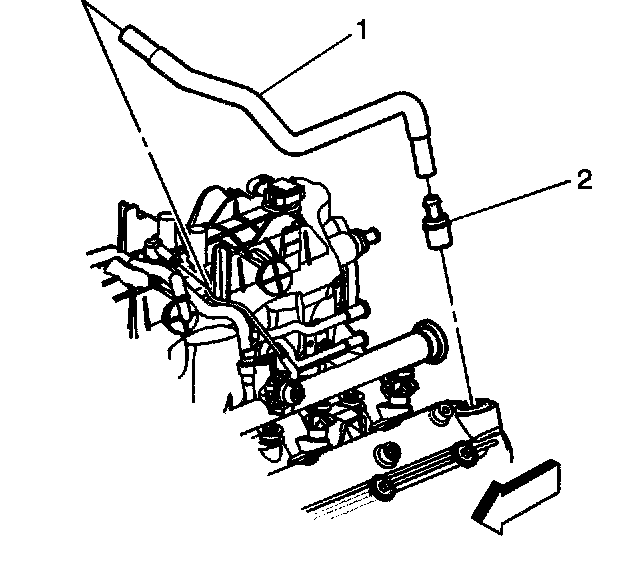

Removal Procedure







1. Remove the Positive Crankcase Ventilation (PCV) tube (1) from the rocker arm cover.
2. Remove the PCV valve (2) from the PCV tube (1).

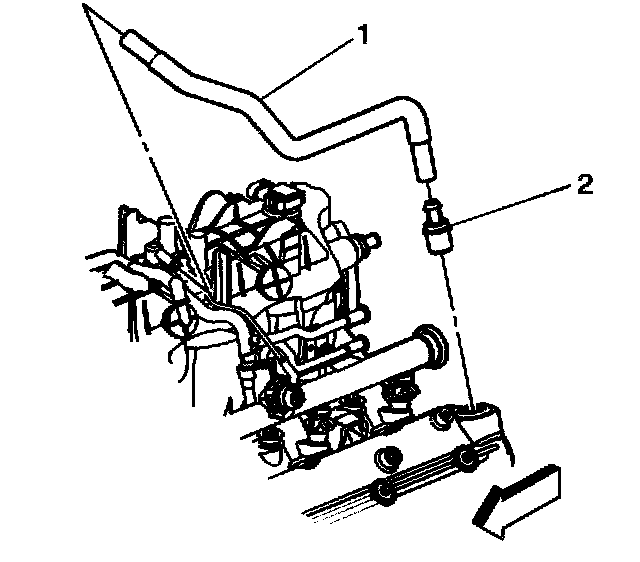

Installation Procedure







1. Install a new PCV valve (2) to the PCV tube (1).
2. Install the PCV tube (1) to the rocker arm cover.
