Right

Exhaust Manifold Heat Shield Replacement - Right
1. Remove the spark plugs.

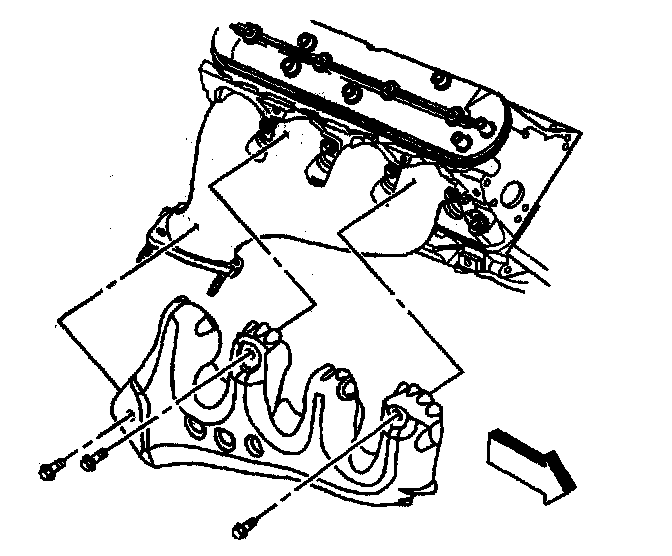

2. Remove the heat shield bolts, and shield from the exhaust manifold.



Installation Procedure







NOTICE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

1. Install the heat shield, and bolts to the exhaust manifold.
Tighten the bolts to 9 Nm (80 inch lbs.).

2. Install the spark plugs.
