Exhaust Manifold Heat Shield Replacement - Left

Removal Procedure
1. Remove the spark plugs.

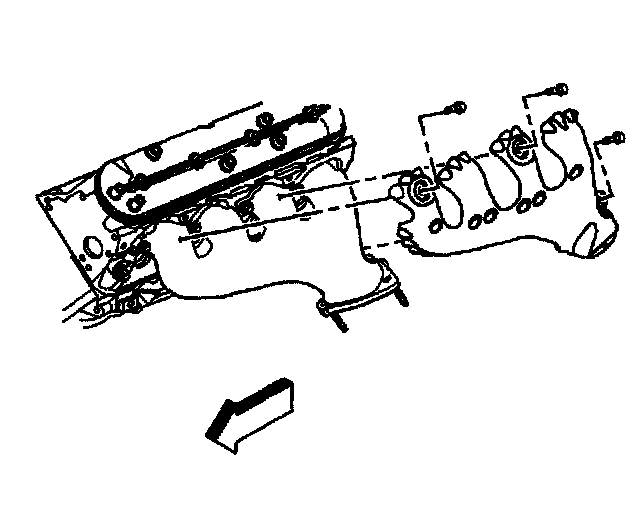

2. Remove the heat shield bolts, and shield from the exhaust manifold.


Installation Procedure







NOTICE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

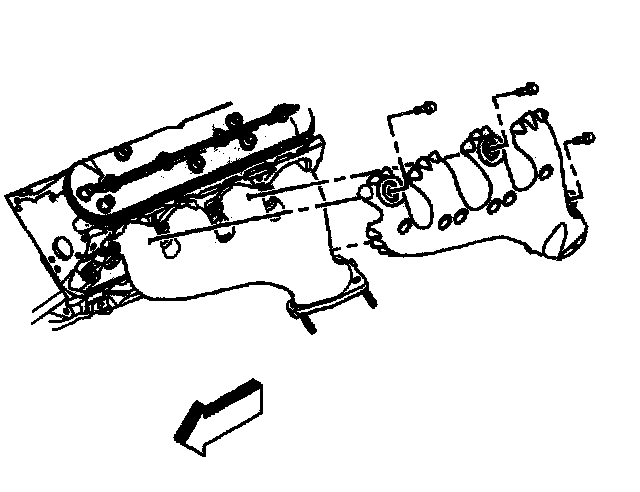

1. Install the heat shield, and bolts to the exhaust manifold.
Tighten the bolts to 9 Nm (80 inch lbs.).

2. Install the spark plugs.
