Chevy Truck
>>
2003
>>
TrailBlazer 2WD V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

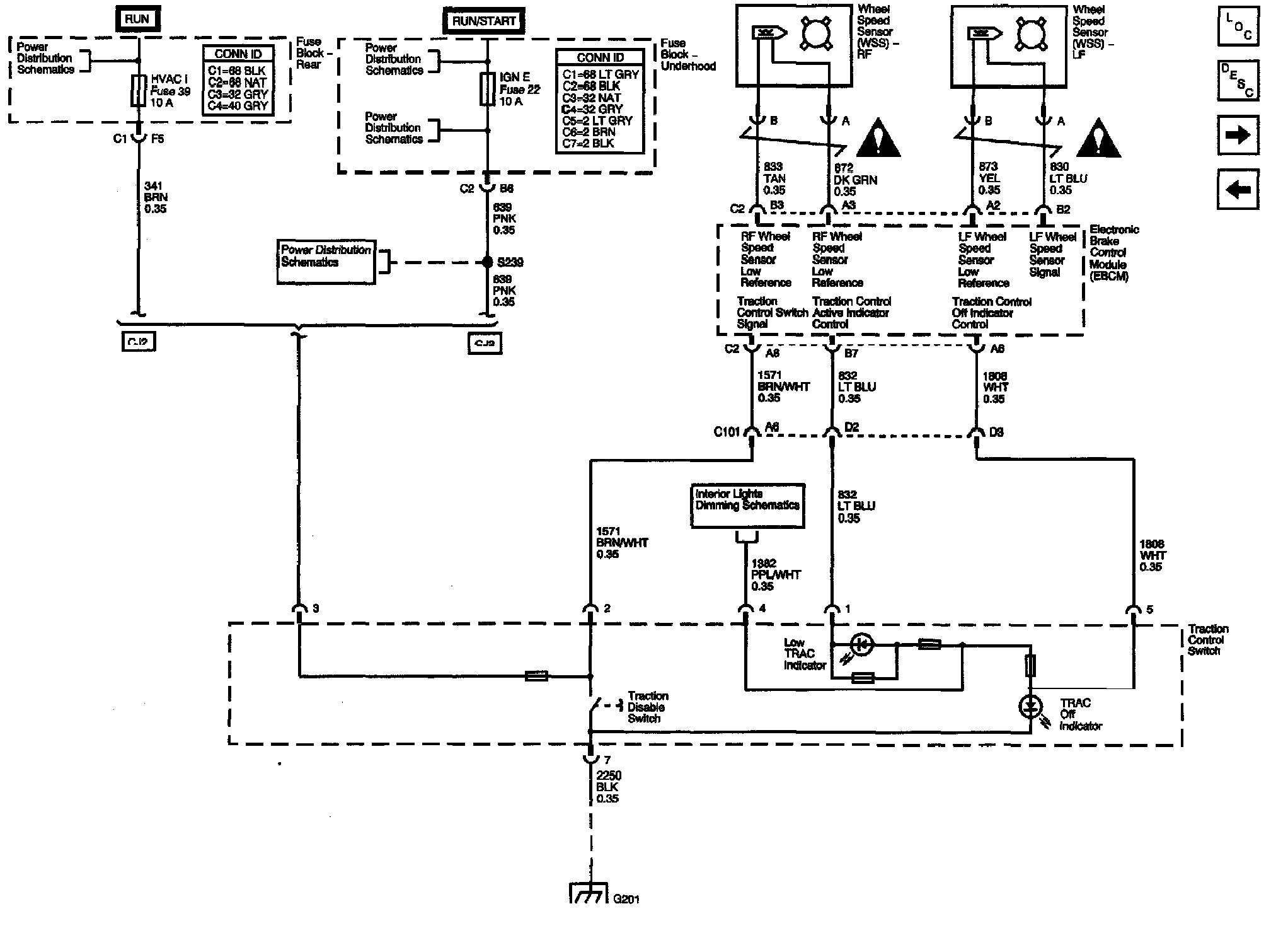

ABS Schematics Traction Control Switch
ABS Schematics Traction Control Switch
