Buckle Replacement - Front

REMOVAL PROCEDURE
1. Remove the front seat assembly.




2. Disconnect the seat belt reminder wiring harness (3) on the driver's seat.

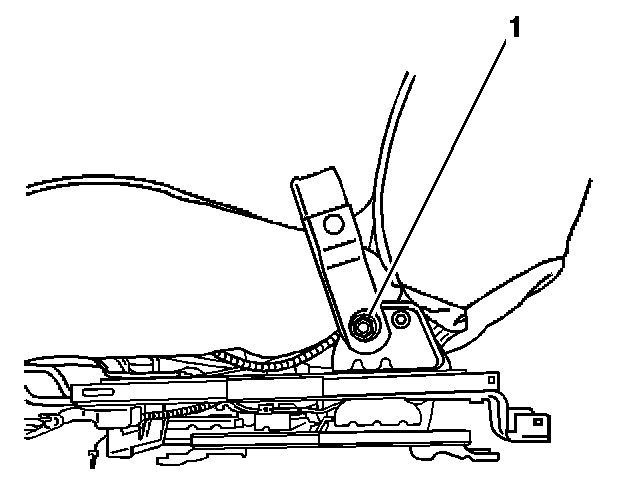

3. Remove the nut (1) which retains the seat belt buckle to the seat assembly.
4. Remove the seat belt buckle from the seat assembly.

INSTALLATION PROCEDURE




1. Install the seat belt buckle to the seat assembly.

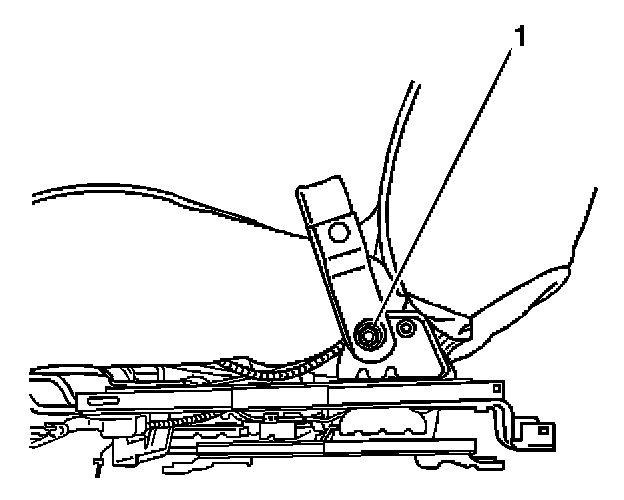

2. Install the nut (1) which retains the seat belt buckle to the seat assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the front seat belt buckle nut to 52 N.m (38 lb ft).




3. Connect the seat belt reminder wiring harness (3) on the driver's seat.
4. Install the front seat assembly.
